(1.93.3/05) - (VAR.956) DELUXE VINYL SEAT WITH BELTS, SUPPORT AND SAFETY SWITCH

Запчасти Case IH JX75 (1.93.3/05) - (VAR.956) DELUXE VINYL SEAT WITH BELTS, SUPPORT AND SAFETY SWITCH (10) - OPERATORS PLATFORM/CAB

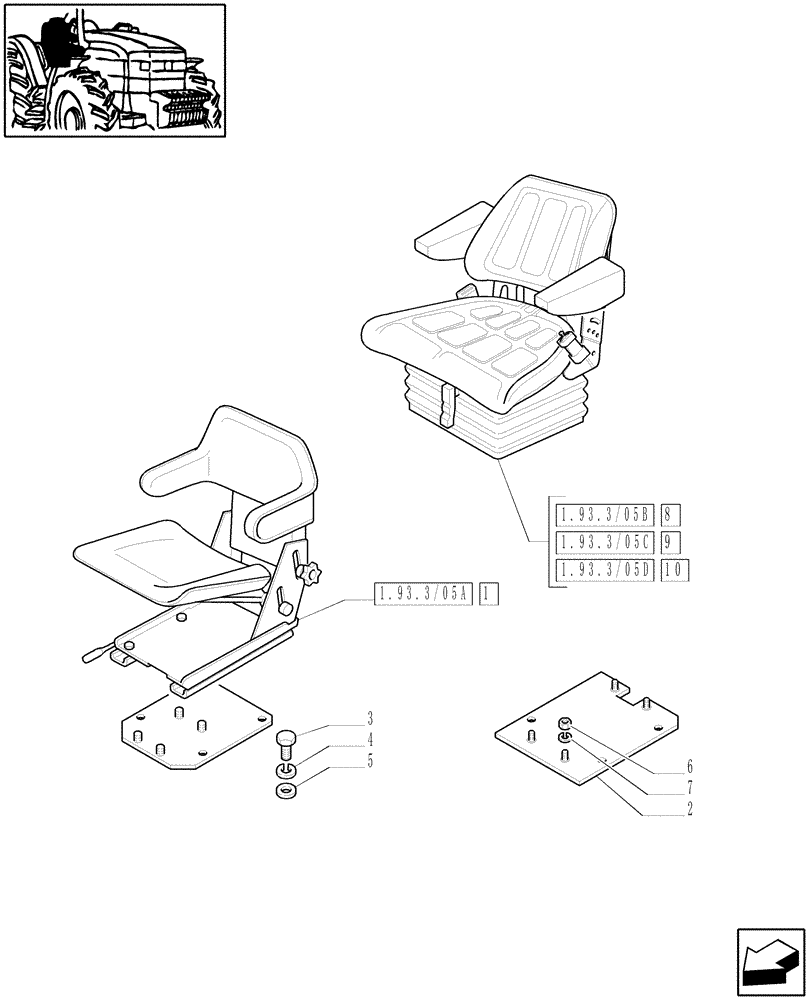

Схема запчастей Case IH JX75 - (1.93.3/05) - (VAR.956) DELUXE VINYL SEAT WITH BELTS, SUPPORT AND SAFETY SWITCH (10) - OPERATORS PLATFORM/CAB
1
2
4
1.93.3/05d
1.93.3/05b
1.93.3/05c
6
1.93.3/05a
10
9
8
5
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091468

DRIVER SEAT

, Serial Range: -C5511

1шт.

2

5093531

SUPPORT

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

5

14497501

WASHER

8 x 17 x 1.6

4шт.

6

12164711

NUT,M10 x 1.25, Cl 8

4шт.

7

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

8

87586657

DRIVER SEAT

, Serial Range: D5511-C5652

1шт.

9

87634293

DRIVER SEAT

Assy, Serial Range: D5652-C5662

1шт.

10

87642771

DRIVER SEAT

Assy, Start Serial: D5662

1шт.
