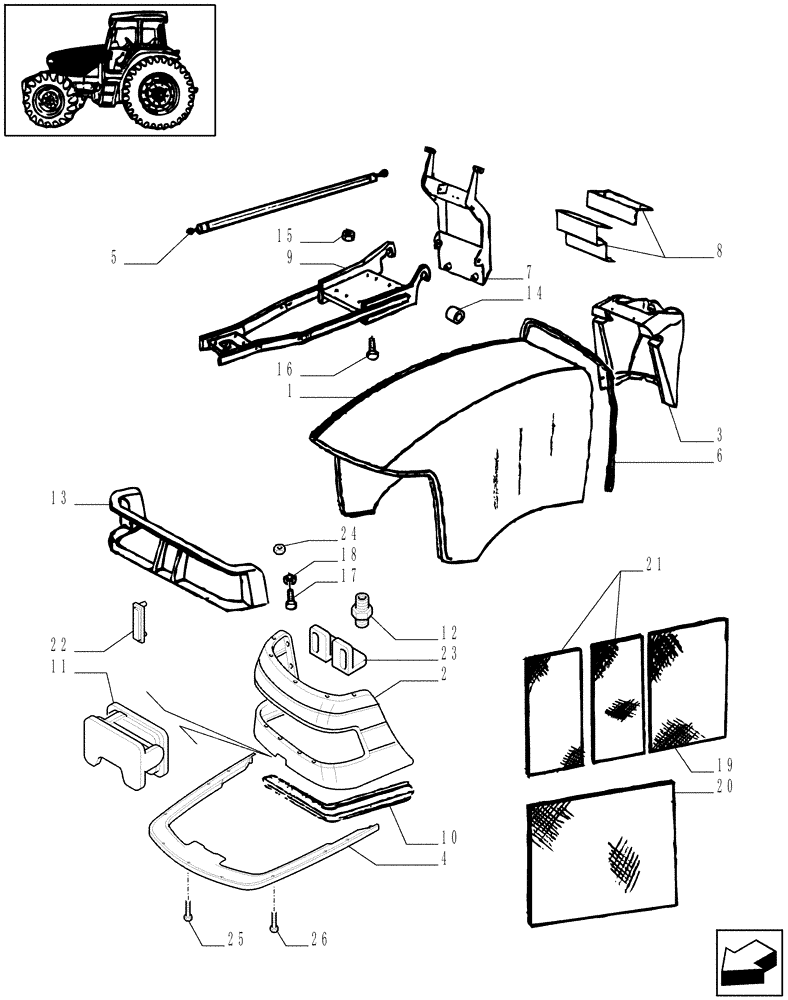

Запчасти Case IH JX75 (1.83.0[01]) - HOODS (08) - SHEET METAL

1

5098165

ENGINE HOOD

JX55;JX65

1шт.

1

5098166

ENGINE HOOD

JX75; JX85

1шт.

1

5098167

ENGINE HOOD

JX95

1шт.

2

87303891

GRILLE

1шт.

3

5091700

HOOD

Rear; L/Cab

1шт.

3

5092002

HOOD

Rear Cab

1шт.

4

5091979

SKIRT

1шт.

5

5093001

GAS STRUT

JX55; JX65

1шт.

5

5093619

CYLINDER, GAS

JX75; JX85

1шт.

5

5093654

GAS STRUT

JX95

1шт.

6

5092202

RUBBER SEAL,1540mm L

1шт.

7

5094536

SUPPORT

JX55; JX65; JX75; JX85

1шт.

7

87394837

SUPPORT

JX95

1шт.

8

5090447

BRACKET

1шт.

8

5094097

SUPPORT

1шт.

9

5093823

SUPPORT

JX55; JX65

1шт.

9

5093824

SUPPORT

JX75; JX85

1шт.

9

5093825

SUPPORT

JX95

1шт.

10

5092201

RUBBER SEAL,1210mm L

1шт.

11

5089984

LOCK

1шт.

12

5096731

PIN

1шт.

13

311298A1

HOUSING

For NA

1шт.

14

5085904

SPACER,10.3mm ID x 20mm OD x 9mm L

2шт.

15

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

16

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

17

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

17

10559807

SELF-TAP SCREW,Hex Flg, M6.3 x 16mm

4шт.

18

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

20шт.

19

5097524

ISOLATOR

, Start Serial: D5369

1шт.

19

5093652

ISOLATOR

300 x 100; JX75; JX85, Serial Range: -C5369

1шт.

20

5092943

ISOLATOR

JX95

1шт.

21

5097523

ISOLATOR

, Start Serial: D5369

2шт.

21

5093651

ISOLATOR

300 x 205; JX55; JX65; JX75; JX85, Serial Range: -C5369

2шт.

22

5091963

BRACKET

1шт.

23

5096732

SUPPORT

1шт.

24

5092105

NUT

01-apr

8шт.

25

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

M4X10

7шт.

26

10444711

SCREW,Hex, M4 x 14mm, Cl 5.8, Full Thd

4шт.
