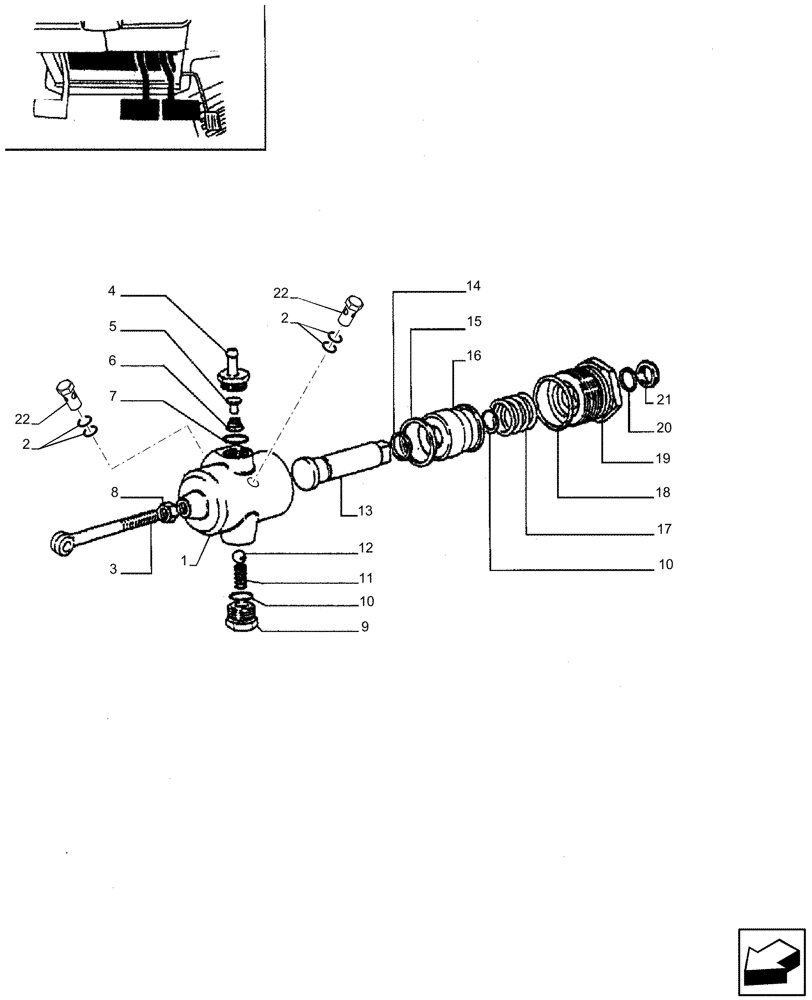

Запчасти Case IH JX75 (1.68.1/02) - (VAR.115) FRONT BRAKE - BRAKE CONTROL CYLINDER (05) - REAR AXLE

1

5169397

CYLINDER,52.03mm Bore Dia

Right Hand Housing Only

2шт.

2

10298360

SEALING WASHER,M10.2 x 16 x 1, Copper

Left Hand Housing Only

8шт.

3

5092850

ROD

2шт.

4

5129893

PLUG

2шт.

5

4997674

CHECK VALVE,13mm OD x 13mm L

2шт.

6

4999488

SPRING

2шт.

7

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

2шт.

8

10791211

THIN NUT,Thin, M12 x 1.5, Cl 04

2шт.

9

5150751

PLUG

2шт.

10

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

11

4997678

SPRING

2шт.

12

20063500

BALL,12.7mm OD

2шт.

13

5149454

PIN

2шт.

14

14463280

O-RING,24.99mm ID x 3.53" Width

4шт.

15

87590455

SEAL,40.95mm ID x 52.06mm OD x 4.2mm Thk

2шт.

16

87590454

PISTON

2шт.

17

5149531

SNAP RING,M25 x 1.2mm Thk, Ext

2шт.

18

5149482

SPRING

2шт.

19

14464580

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

20

5149452

PLUG

2шт.

21

4997684

WIPER SEAL,45mm ID x 35mm OD x 7mm Thk

2шт.

22

5103908

BANJO BOLT,M10 x 1.25 x 23mm

4шт.
