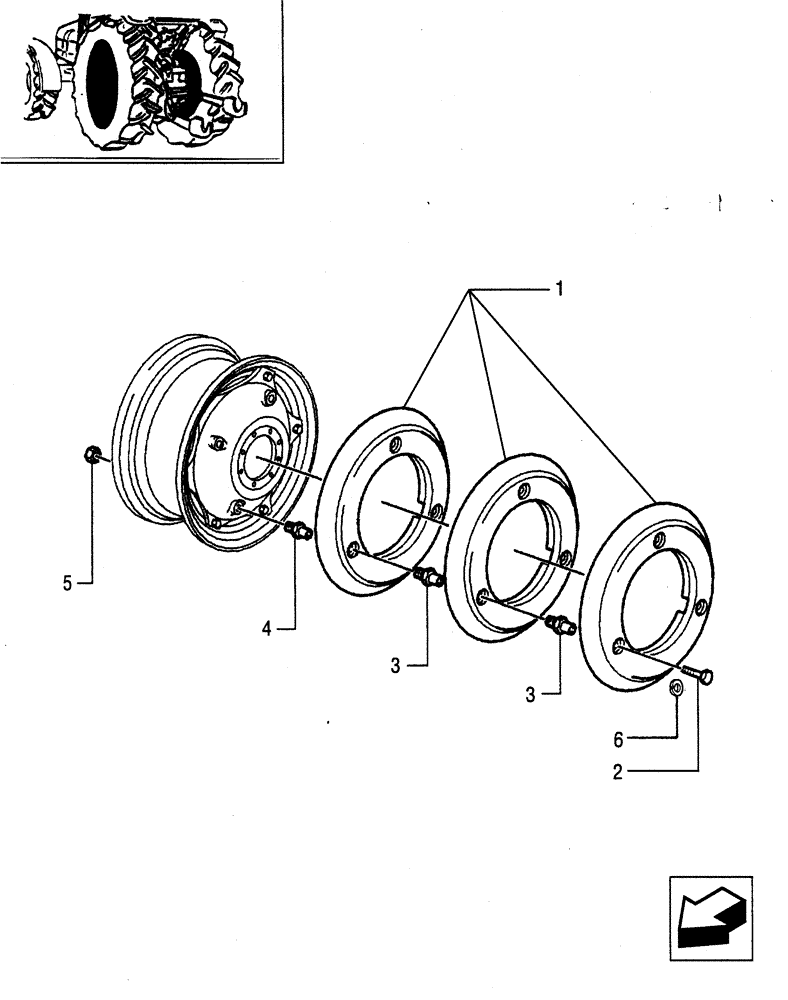

Запчасти Case IH JX75 (1.49.7[02]) - (VAR.471) REAR COUNTERWEIGHTS - 6 (05) - REAR AXLE

1

5093512

WHEEL WEIGHT,50Kg/110Lb

50 Kg. (110 Lbs.)

6шт.

2

15980521

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

12шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

6шт.

5

12164111

NUT,M16, Cl 8

6шт.

6

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.
