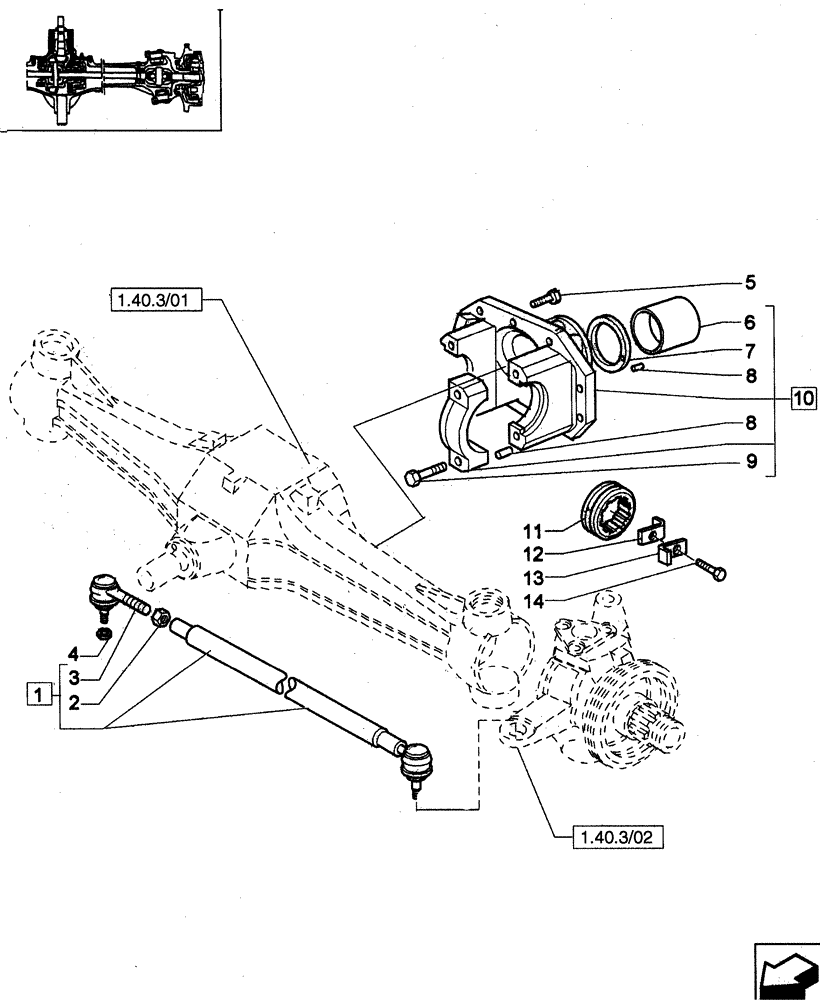

Запчасти Case IH JX75 (1.40.3/05[01]) - (VAR.539) FRONT AXLE - SUPPORT - TIE-ROD (04) - FRONT AXLE & STEERING

1

5168933

TRACK ROD ASSY,30mm ID x 1475mm L

1шт.

2

587302

LOCK NUT,Hex, M20 x 1

20 x 1

1шт.

3

5109553

BALL JOINT

M16 x M20 Threads

1шт.

4

12575914

LOCK NUT

2шт.

5

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

10шт.

6

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

1шт.

7

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

1шт.

8

4966244

PIN,5mm OD x 15mm L

3шт.

9

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

10

5153612

CARRIER,Bevel Gear

1шт.

11

4996750

RING NUT,M100 x 2

2шт.

12

4996751

PLATE

2шт.

13

562659

PLATE

2шт.

14

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
