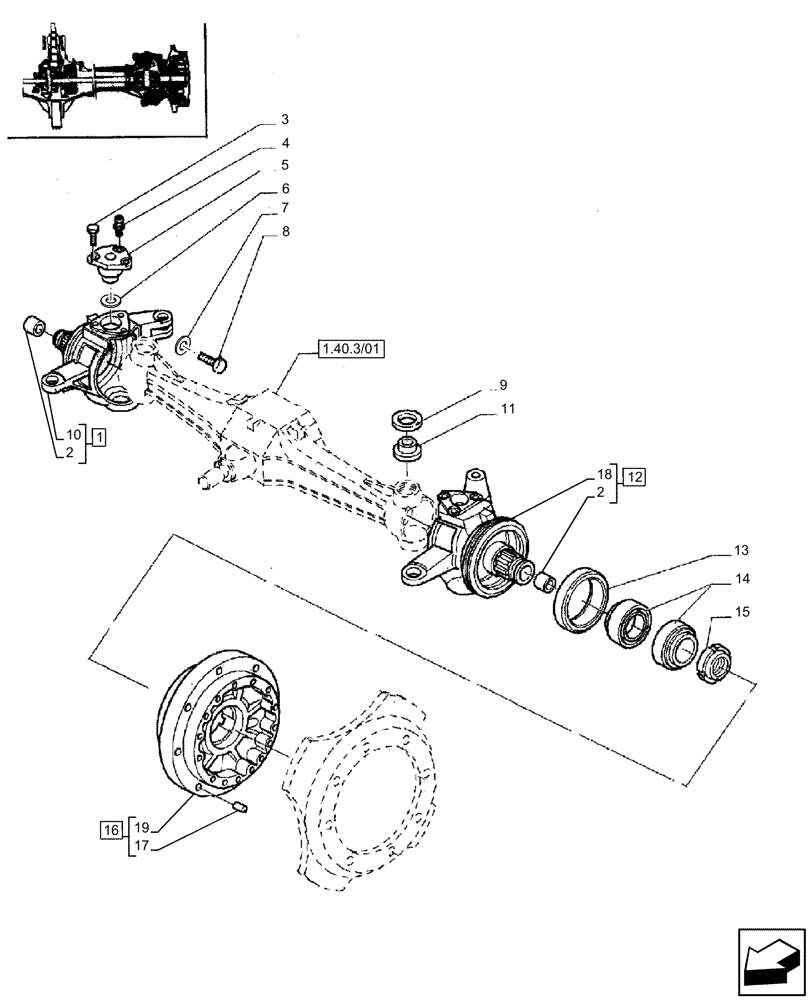

Запчасти Case IH JX75 (1.40.3/02[02]) - (VAR.115) FRONT AXLE - STEERING PIVOT PINS (04) - FRONT AXLE & STEERING

1

5142231

KNUCKLE,RH

ASSY. RH, Incl 2,10

1шт.

2

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.

3

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5137239

BALL STUD

BALL PIN

4шт.

6

5166180

SPACER,10.2mm ID x 20mm OD x 9mm L

2шт.

7

5148495

SPACER,10.2mm ID x 22mm OD x 13.5mm L

2шт.

8

84357510

SCREW

2шт.

9

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

10

NSS

NOT SOLD SEPARAT

Knuckle Steering, Incl. in 1

1шт.

11

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

4шт.

12

5142229

KNUCKLE,LH

LH, Incl 2, 18

1шт.

13

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

165 x 190 x 15.5-17

2шт.

14

5136951

TAPERED BEARING,95mm ID x 135mm OD x 20mm W

95 x 135 x 20

4шт.

15

5142020

NUT,Hex, M75 x 2

2шт.

16

87341361

HUB

Incl. 17,19, Start Serial: D5201

2шт.

17

4985063

DOWEL,12mm OD x 20mm L

2шт.

18

NSS

NOT SOLD SEPARAT

Knuckle Steering, Incl. in 12

1шт.

19

NSS

NOT SOLD SEPARAT

Hub, Driving Wheel Incl.16

1шт.
