Запчасти Case IH JX75 (1.40.0/06[02]) - FRONT AXLE - BEVEL GEAR PAIR - SHIMS AND BEARINGS (04) - FRONT AXLE & STEERING

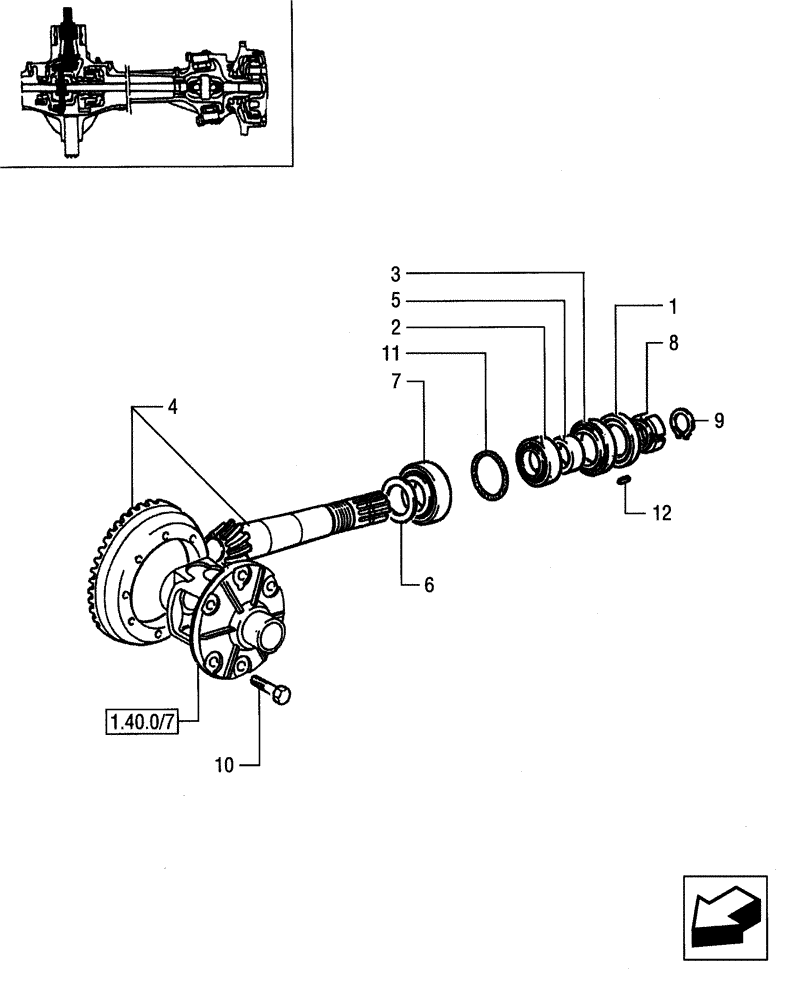

Схема запчастей Case IH JX75 - (1.40.0/06[02]) - FRONT AXLE - BEVEL GEAR PAIR - SHIMS AND BEARINGS (04) - FRONT AXLE & STEERING
11
5
4
9
7
12
2
1.40.0/7
3
8
6
10
1

Артикул

Название

Примечание

Количество

1

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

2

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

3

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

1шт.

4

5142023

GEAR SET

(9/39), Ring & Pinion

1шт.

5

5142026

RING,35.1mm ID x 45mm OD x 22mm L

1шт.

6

5087435

SHIM KIT

1шт.

6

5142027

SHIM,41.4mm ID x 58mm OD x 2.5mm Thk

1шт.

6

5142028

SHIM,41.4mm ID x 58mm OD x 2.6mm Thk

1шт.

6

5142029

SHIM,41.4mm ID x 58mm OD x 2.7mm Thk

1шт.

6

5142030

SHIM,41.4mm ID x 58mm OD x 2.8mm Thk

1шт.

6

5142031

SHIM,41.4mm ID x 58mm OD x 2.9mm Thk

1шт.

6

5142032

SHIM,41.4mm ID x 58mm OD x 3mm Thk

1шт.

6

5142033

SHIM,41.4mm ID x 58mm OD x 3.1mm Thk

1шт.

6

5142034

SHIM,41.4mm ID x 58mm OD x 3.2mm Thk

1шт.

6

5142035

SHIM,41.4mm ID x 58mm OD x 3.3mm Thk

1шт.

6

5142036

SHIM,41.4mm ID x 58mm OD x 3.4mm Thk

1шт.

6

5142037

SHIM,41.4mm ID x 58mm OD x 3.5mm Thk

1шт.

6

5142038

SHIM,41.4mm ID x 58mm OD x 3.6mm Thk

1шт.

6

5142039

SHIM,41.4mm ID x 58mm OD x 3.7mm Thk

1шт.

7

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

8

5143242

RING NUT,M35 x 1.5

1шт.

9

11067776

SNAP RING,M29, Ext

1шт.

10

14274471

SCREW

8шт.

11

14454380

O-RING,31.47mm ID x 1.78" Width

1шт.

12

20419320

BALL,6.35mm OD

1шт.

Выбрано товаров: 25
