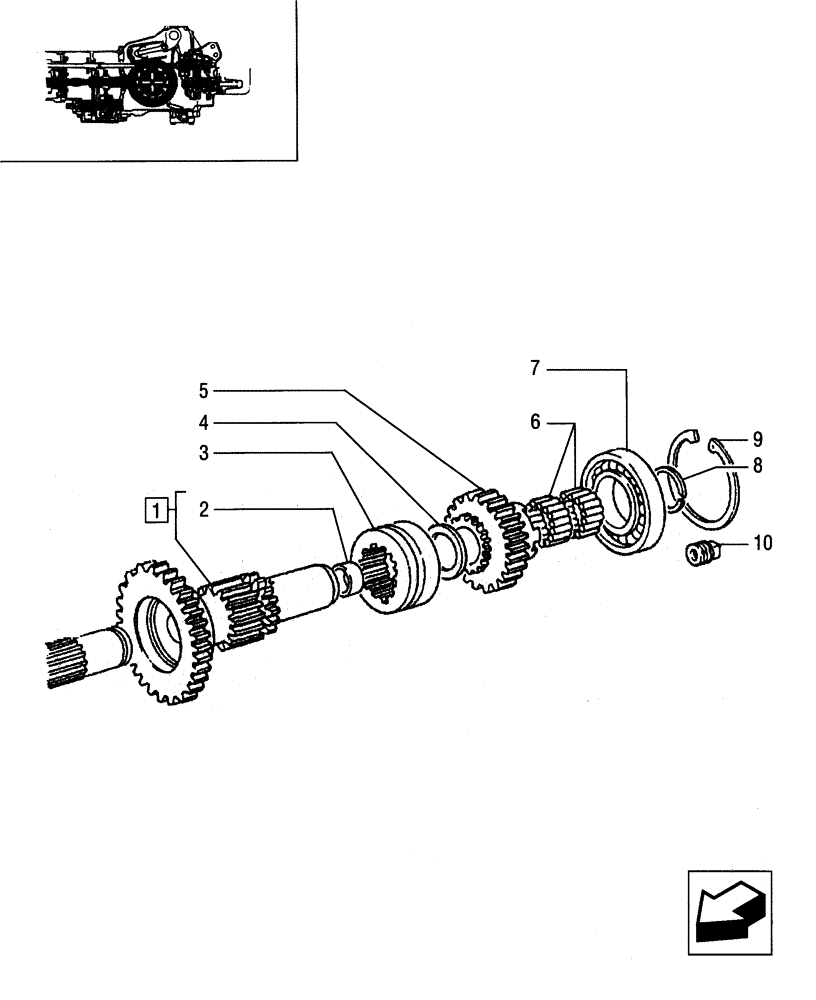

Запчасти Case IH JX75 (1.32.1[08]) - CENTRAL REDUCTION GEARS - BEVEL GEAR PAIR AND DRIVEN GEARS (03) - TRANSMISSION

1

5176778

SHAFT

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

5

5131169

GEAR

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

5117076

CIRCLIP,M47, Ext

1шт.

9

11075476

SNAP RING,M110, Int

1шт.

10

14323914

PLUG,M10 x 1.25 x 14mm L

2шт.
