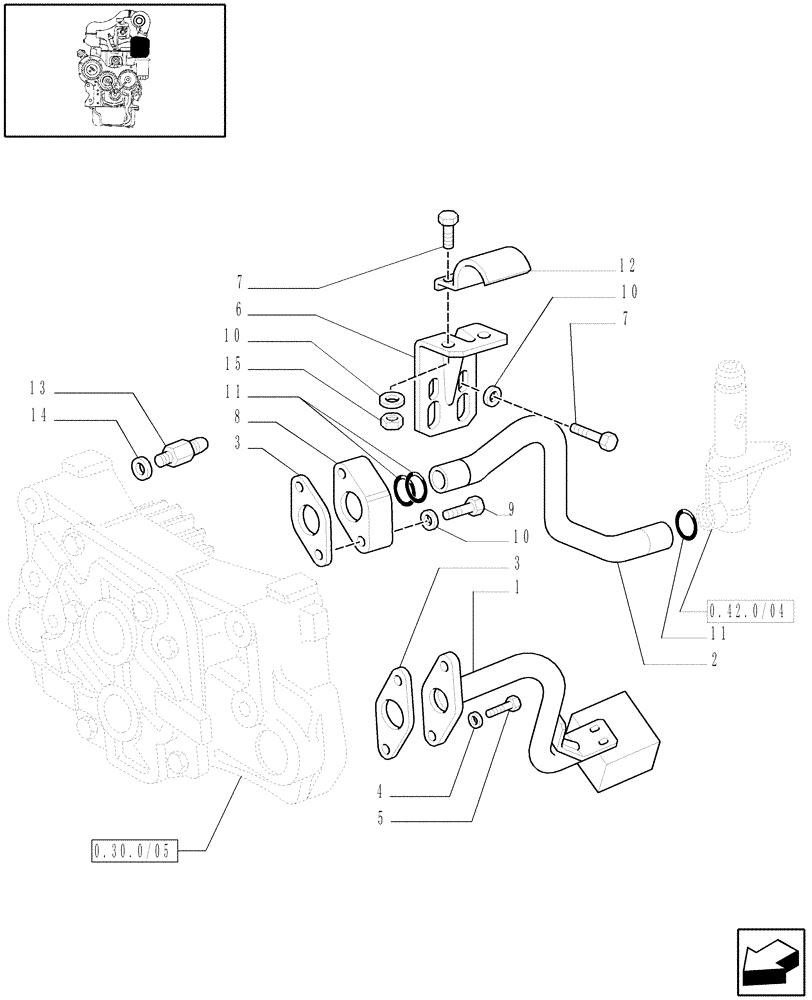

Запчасти Case IH JX70 (0.30.5/05) - (VAR.319-747) TTF ENGINE TIER2 - LINES AND OIL LEVEL INDICATOR (01) - ENGINE

1

99460958

RIGID TUBE

1шт.

2

99465109

RIGID TUBE

1шт.

3

5096069

GASKET,0.8mm Thk

2шт.

4

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

5

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

4775923

BRACKET

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

5096548

SUPPORT

1шт.

9

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

2шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

11

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

3шт.

12

4777690

HOSE CLIP

1шт.

13

4785501

HYD CONNECTOR,M10 x 1.25

M10 x 1.25

1шт.

14

561293

O-RING,12mm OD x 2.5mm Width

1шт.

15

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.
