(0.30.5/01) - PIPING ENGINE OIL

Запчасти Case IH JX70 (0.30.5/01) - PIPING ENGINE OIL (01) - ENGINE

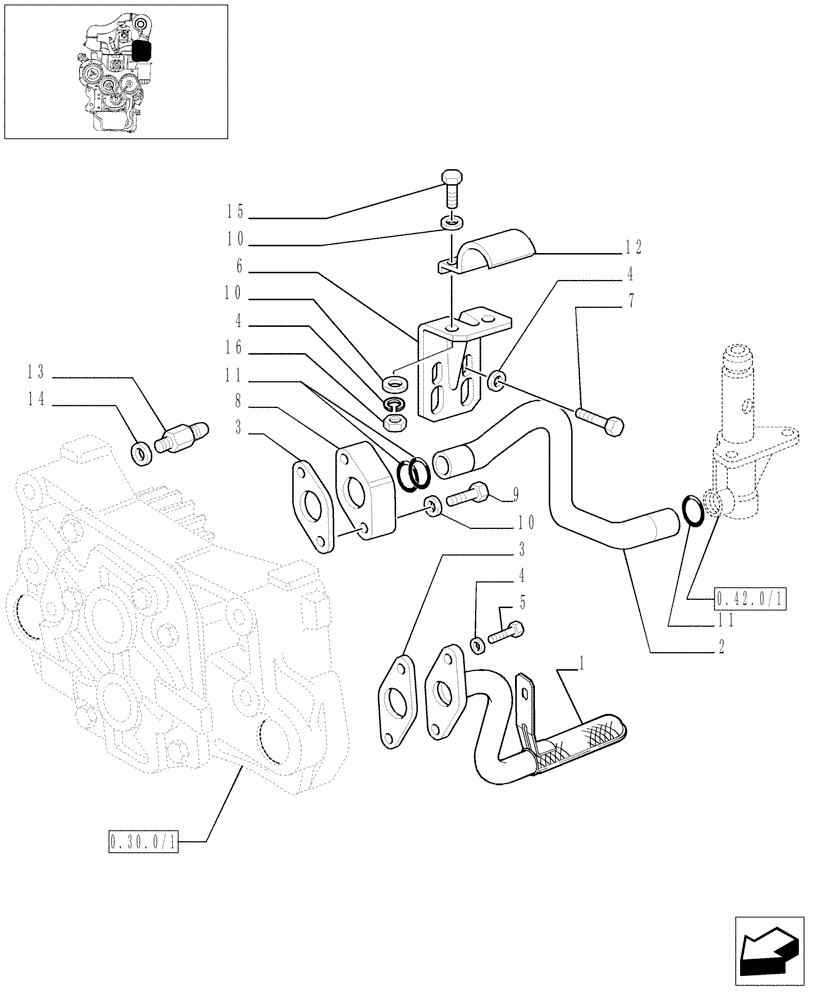

Схема запчастей Case IH JX70 - (0.30.5/01) - PIPING ENGINE OIL (01) - ENGINE
15
3
8
7
2
10
13
10
12
6
4
0.42.0/1
0.30.0/1
4
11
5
16
3
11
9
14
10
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504120191

SUCTION PIPE

1шт.

2

99465109

RIGID TUBE

1шт.

3

4852561

GASKET,0.8mm Thk

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

5

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

6

4775923

BRACKET

1шт.

7

16045421

BOLT,Hex, M8 x 110mm, Cl 8.8

2шт.

8

4773265

HYD CONNECTOR

1шт.

9

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

10

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

6шт.

11

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

3шт.

12

4777690

HOSE CLIP

1шт.

13

4785501

HYD CONNECTOR,M10 x 1.25

M10 x 1.25

1шт.

14

561293

O-RING,12mm OD x 2.5mm Width

1шт.

15

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

9628098

NUT,M8 x 1.25, Cl 10

2шт.

Выбрано товаров: 16
