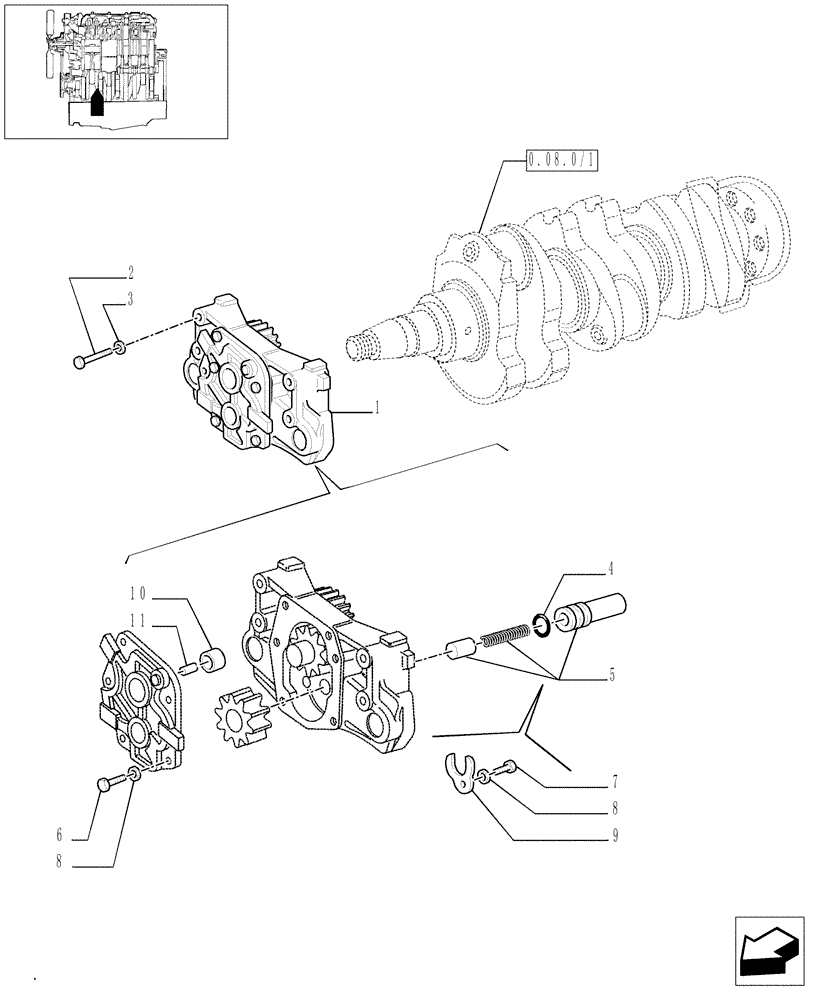

Запчасти Case IH JX70 (0.30.0/01) - OIL PUMP (01) - ENGINE

1

500350130

ENGINE OIL PUMP

1шт.

2

16606224

SCREW,M8 x 55mm

M8 x 55

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

5

500350132

HYDRAULIC VALVE

1шт.

6

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

5шт.

7

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

8

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

6шт.

9

4613353

YOKE

1шт.

10

4613291

BUSHING,17.62mm ID x 21.03mm OD x 12mm L

17 x 21 x 12

1шт.

11

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

3шт.
