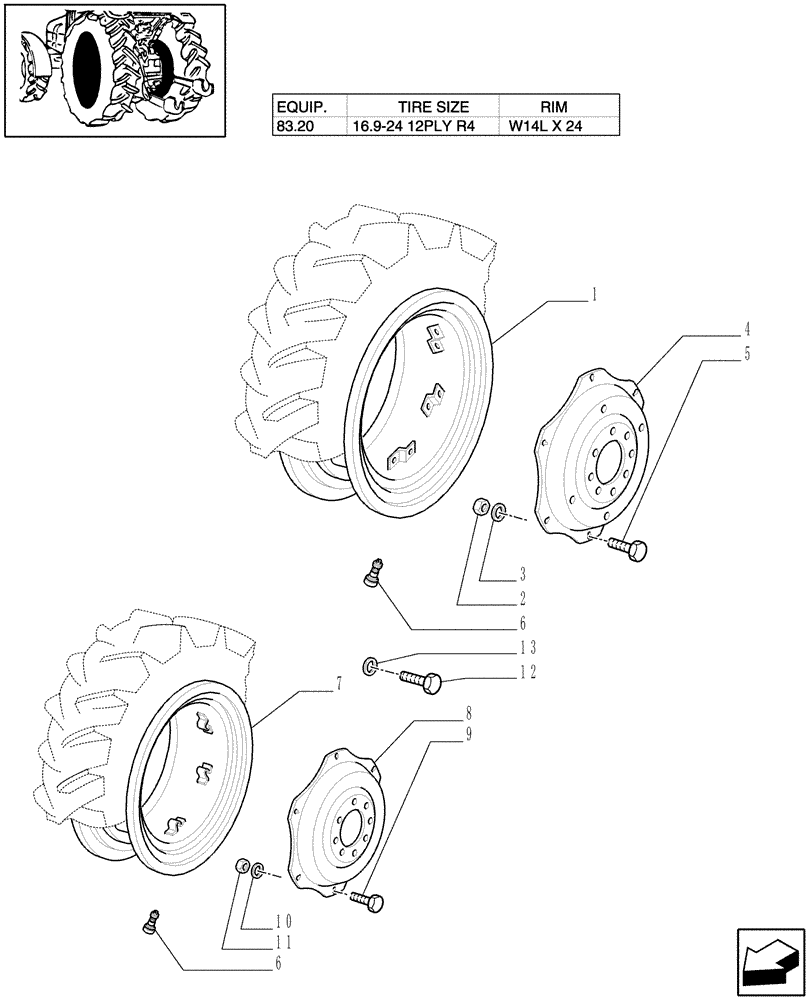

Запчасти Case IH JX70 (83.00[04]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

47128191

RIM

W14Lx24, Serial Range: -C6926

2шт.

2

10790421

NUT,M14 x 1.5, Cl 10

12шт.

3

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

14x32

12шт.

4

47128172

DISC

D=515, Serial Range: -C6926

2шт.

5

4959999

BOLT,M14 x 1.5 x 35mm

M14x1.5x35

12шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

84315238

RIM,W14L x 24, 6 Bolts, CASE Silver

W14L x 24, Start Serial: D6926

2шт.

8

84313169

WHEEL DISC,515mm DIA, 8 Bolts, CASE Silver

D=515, Start Serial: D6926

2шт.

9

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

12шт.

10

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

12шт.

11

10790521

NUT,M16 x 1.5, Cl 10

12шт.

12

15983831

BOLT,Hex, M18 x 1.5 x 35mm, Cl 10.9

16шт.

13

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

19x40x6

16шт.
