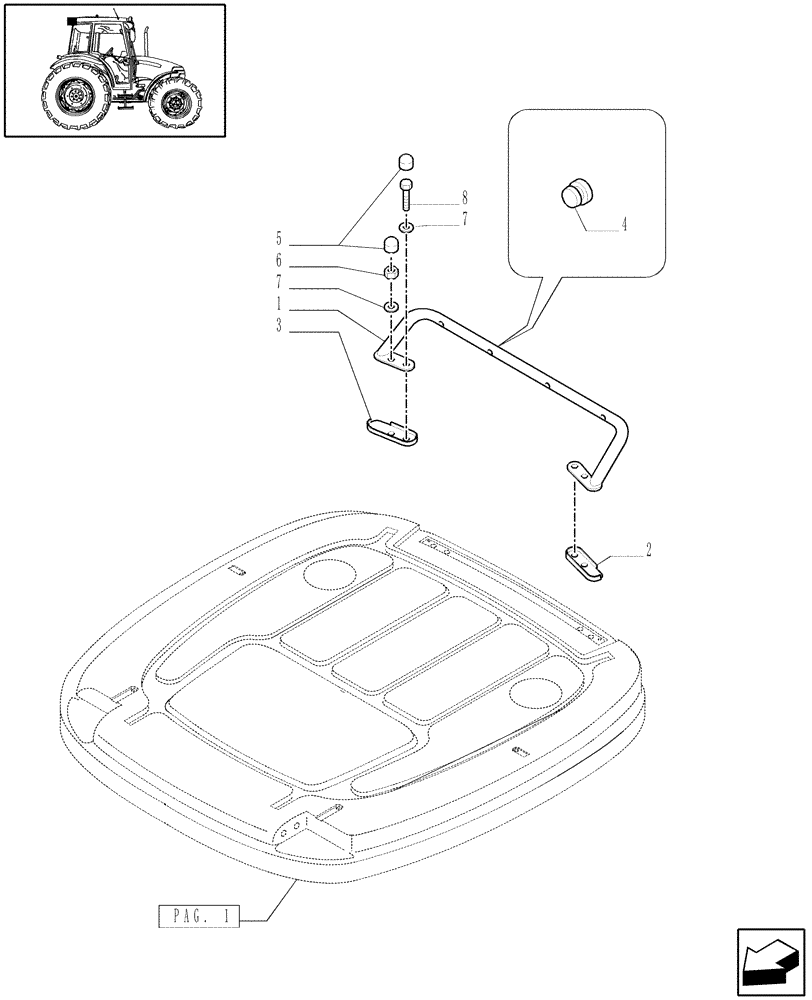

Запчасти Case IH JX70 (1.92.94[02]) - WORK LIGHTS SUPPORT (10) - OPERATORS PLATFORM/CAB

1

5089502

SUPPORT

1шт.

2

5092923

SEAL

LH

1шт.

3

5094124

SEAL

RH

1шт.

4

5094079

PLUG,Dome Head

D=11

8шт.

5

5089481

CAP,17mm OD

6шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

8

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
