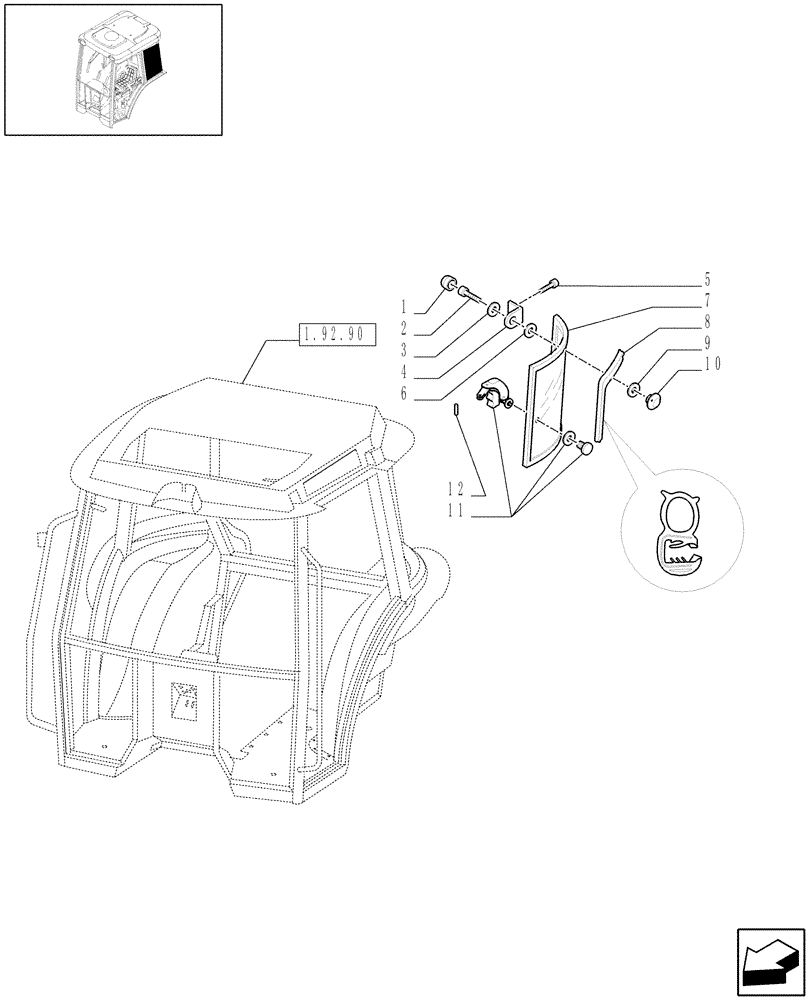

Запчасти Case IH JX70 (1.92.92[03]) - CABINE SIDE GLASS (10) - OPERATORS PLATFORM/CAB

1

5089481

CAP,17mm OD

8шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

3

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

6шт.

4

5089560

BRACKET

4шт.

5

15901601

SCREW,M4 x 16mm

8шт.

6

5094375

WASHER,8mm ID x 32.2mm OD x 3.9mm Thk

6шт.

7

5089556

CAB GLASS

RH, CAB

1шт.

7

5089600

CAB GLASS

LH, CAB

1шт.

8

5096325

SEAL, GLASS

RH, Serial Range: -C5758

1шт.

8

87679907

SEAL, GLASS,2638mm L

, Start Serial: D5758

2шт.

9

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

8шт.

10

5094141

NUT,Spheric, M8

8шт.

11

5096473

HANDLE

RH

1шт.

11

5096474

HANDLE

LH

1шт.

12

5094380

COTTER PIN

2шт.
