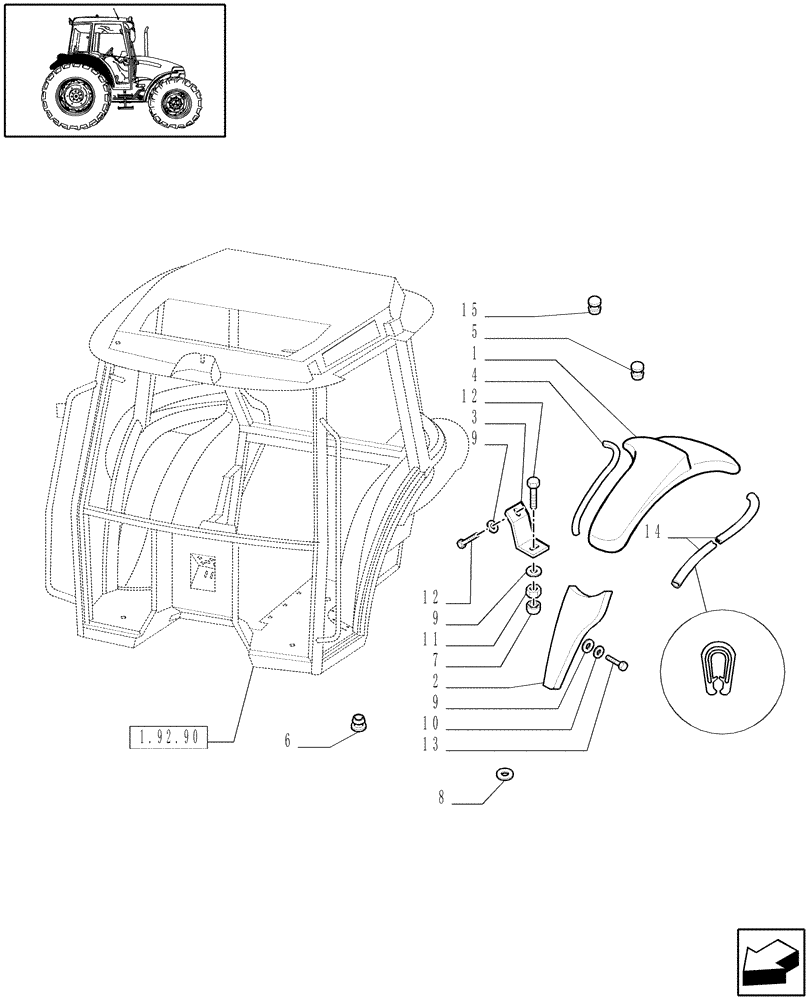

Запчасти Case IH JX70 (1.92.87/01[03]) - MUDGUARDS AND FOOTBOARDS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

5092194

FENDER

RH, JX60, JX70, JX80, JX90

1шт.

1

5093580

FENDER

RH, JX95

1шт.

1

5092195

FENDER

LH, JX60, JX70, JX80, JX90

1шт.

1

5093581

FENDER

LH, JX95

1шт.

2

5089624

FENDER EXTENSION

RH, JX60, JX70, JX80, JX90

1шт.

2

5093469

FENDER EXTENSION

RH, JX95

1шт.

2

5089625

FENDER EXTENSION

LH, JX60, JX70, JX80, JX90

1шт.

2

5093470

FENDER EXTENSION

LH, JX95

1шт.

3

5094449

BRACKET

RH

1шт.

3

5094450

SUPPORT

LH

1шт.

4

5094451

SEAL

2шт.

5

5094079

PLUG,Dome Head

D=11

2шт.

6

5094071

PLUG

D=22

2шт.

7

5089481

CAP,17mm OD

8шт.

8

5094452

SEALING WASHER

SEAL WASHER

2шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

32шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

18шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

12шт.

12

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

13

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

10шт.

14

5093471

TRIM,2250mm L

JX95

2шт.

15

5093850

PLUG,9mm OD

D=9

4шт.
