Запчасти Case IH JX70 (1.92.85/02) - (VAR.190) DELUXE SEAT WITH ARM REST - L/CAB (10) - OPERATORS PLATFORM/CAB

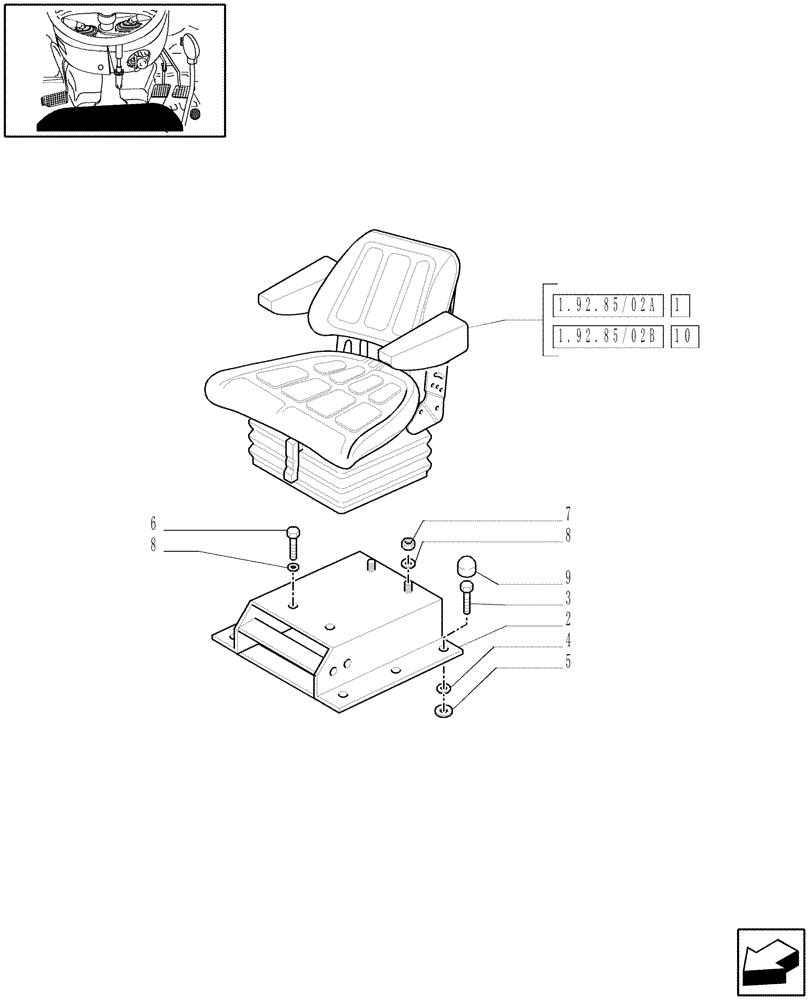

Схема запчастей Case IH JX70 - (1.92.85/02) - (VAR.190) DELUXE SEAT WITH ARM REST - L/CAB (10) - OPERATORS PLATFORM/CAB
1.92.85/02a
1
8
3
7
9
6
1.92.85/02b
2
5
10
4
8

Артикул

Название

Примечание

Количество

1

5093376

DRIVER SEAT

ASSY, Serial Range: -C5662

1шт.

2

5093531

SUPPORT

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

8

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

9

5089481

CAP,17mm OD

6шт.

10

87642769

DRIVER SEAT

ASSY, Start Serial: D5662

1шт.

Выбрано товаров: 10
