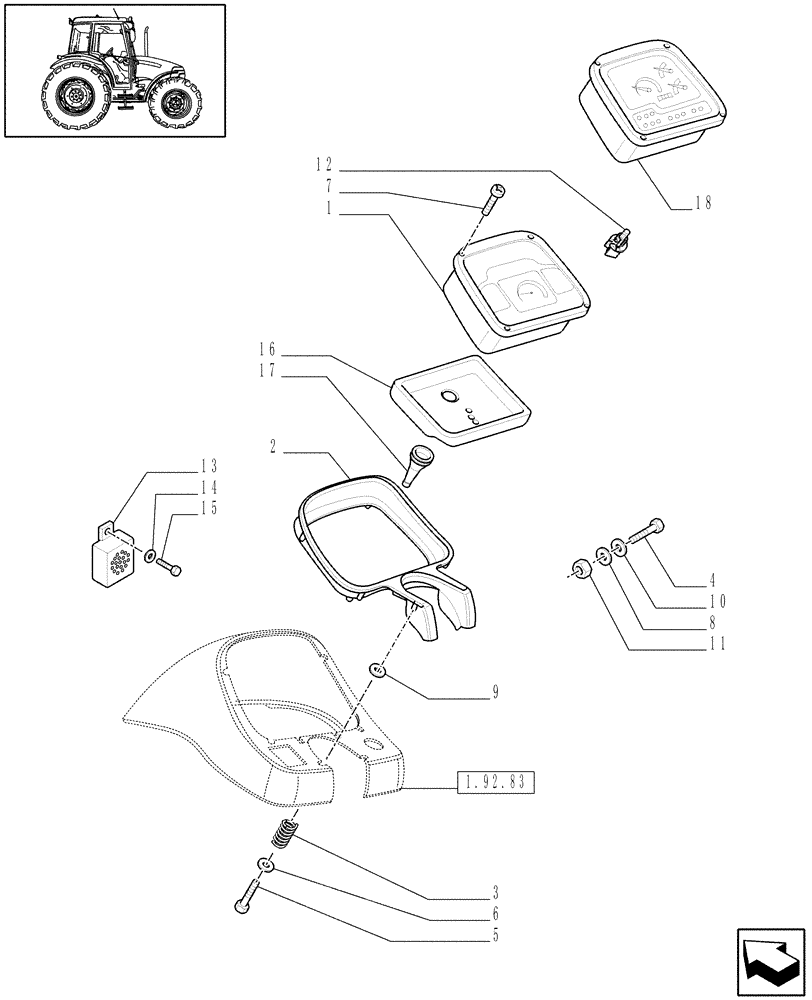

Запчасти Case IH JX70 (1.92.75[02]) - ELECTRIC CONTROLS - INSTRUMENT CLUSTER (10) - OPERATORS PLATFORM/CAB

1

5096046

INSTRUMENT CLUSTER

Incl.12, Serial Range: -C7066

1шт.

2

5089537

BEZEL

, Serial Range: -C6879

1шт.

2

84388723

BEZEL

, Start Serial: D6879

1шт.

3

5089761

SPRING

6шт.

4

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

5

15693501

SCREW,Cross Oval Hd, M4.8 x 22

6шт.

6

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

6шт.

7

15958107

SCREW,Pan Hd, M4 x 25

4шт.

8

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

9

5094197

WASHER,10.5mm ID x 18mm OD x 2mm Thk

2шт.

10

12035670

LOCK WASHER

M6

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

12

5080701

BULB

14V-2W

14шт.

12

5080702

BULB

12V-3W

1шт.

13

5188605

BUZZER,12V, 0.7A

Time-Delay, Var. 007

1шт.

14

10571579

LOCK WASHER,M6

1шт.

15

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

16

84286370

COVER

1шт.

17

84286371

BOOT

1шт.

18

84327482

INSTRUMENT CLUSTER

, Start Serial: D7066

1шт.
