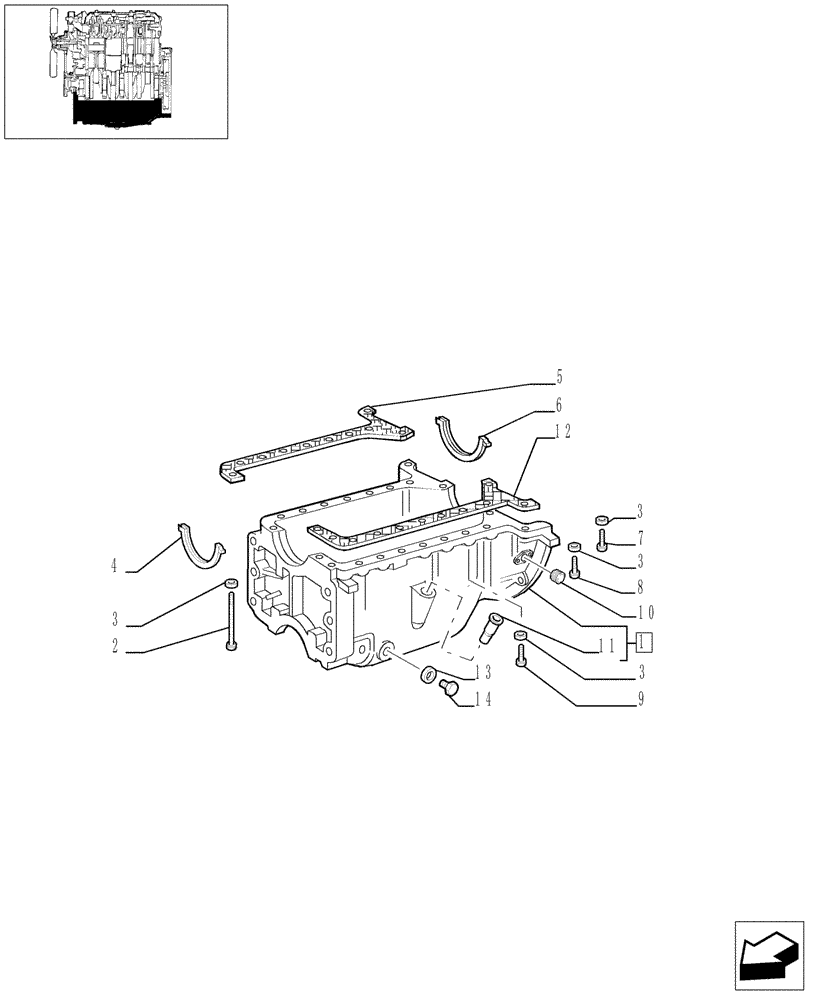

Запчасти Case IH JX70 (0.04.2) - OIL PAN (01) - ENGINE

1

99450593

ENGINE OIL PAN

Assy

1шт.

2

4607933

BOLT,Hex, M10 x 1.25 x 262mm

3шт.

2

4607934

SCREW,Hex, M10 x 1.25 x 178mm

M10 x 1.25 x 178

2шт.

3

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10 x 18 x 2

21шт.

4

4031577

SEAL,10mm Thk

Front

1шт.

5

500347231

OIL SEAL

LH with 11 holes

1шт.

6

4600753

SEAL

Rear

1шт.

7

11306934

BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd

2шт.

8

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

5шт.

9

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

9шт.

10

504142590

PLUG

1шт.

11

4694949

TUBE

1шт.

12

500347230

OIL SEAL

RH with 10 holes

1шт.

13

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

14

2852318

PLUG,Rd Hd, Int Hex, M22 x 1.5 x 16mm, ORB

M22 x 1.5

1шт.
