Запчасти Case IH JX70 (1.41.0[02]) - 2WD FRONT AXLE - STEERING KNUCKLE (04) - FRONT AXLE & STEERING

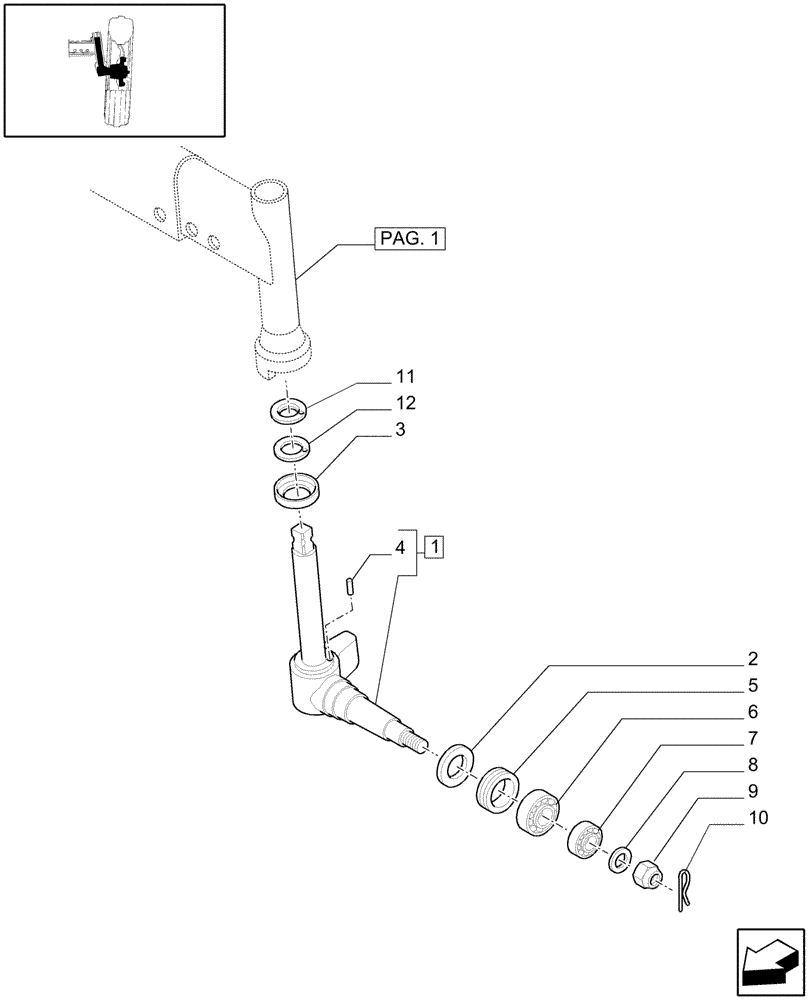

Схема запчастей Case IH JX70 - (1.41.0[02]) - 2WD FRONT AXLE - STEERING KNUCKLE (04) - FRONT AXLE & STEERING
2
8
5
6
11
3
4
12
1
pag. 1
10
7
9

Артикул

Название

Примечание

Количество

1

5090335

STUB AXLE/STEERING S

LH, JX60, JX70

1шт.

1

5090333

STUB AXLE/STEERING S

RH, JX60, JX70

1шт.

1

5090330

SPINDLE

RH, JX80, JX90, JX95

1шт.

1

5090331

STUB AXLE/STEERING S

LH, JX80, JX90, JX95

1шт.

1

5090481

STUB AXLE/STEERING S

RH, VAR. 860, JX60, JX70

1шт.

1

5090482

STUB AXLE/STEERING S

LH, VAR. 860, JX60, JX70

1шт.

1

5090850

STUB AXLE/STEERING S

RH, VAR. 860, JX80, JX90, JX95

1шт.

1

5090851

STUB AXLE/STEERING S

LH, VAR. 860, JX80, JX90, JX95

1шт.

2

5090133

SEALING RING,50.1mm ID x 73mm OD x 3.9mm Thk

SEALRING

2шт.

3

566125

CUP

2шт.

4

10839510

DOWEL,M6 x 9

2шт.

5

5090135

SEAL,50mm ID x 74mm OD x 10mm Thk

2шт.

6

5132342

TAPERED BEARING,Roller, 41.3mm ID x 73.4mm OD x 17.6mm W

41.275 x 73.431 x 19.558

2шт.

7

5132343

TAPERED BEARING,25.4mm ID x 57.17mm OD x 19.43mm W

25.4 x 57.15 x 19.4

2шт.

8

5086901

WASHER,20.5mm ID x 32mm OD x 3mm Thk

2шт.

9

10724720

SLOTTED NUT,M20 x 1.5

M20x1;5

2шт.

10

10733801

COTTER PIN,M4 x 36

2шт.

11

561953

THRUST WASHER,38.12mm ID x 61mm OD x 4mm Thk

2шт.

12

5144475

THRUST WASHER,38mm ID x 61mm OD x 4mm Thk

2шт.

Выбрано товаров: 19
