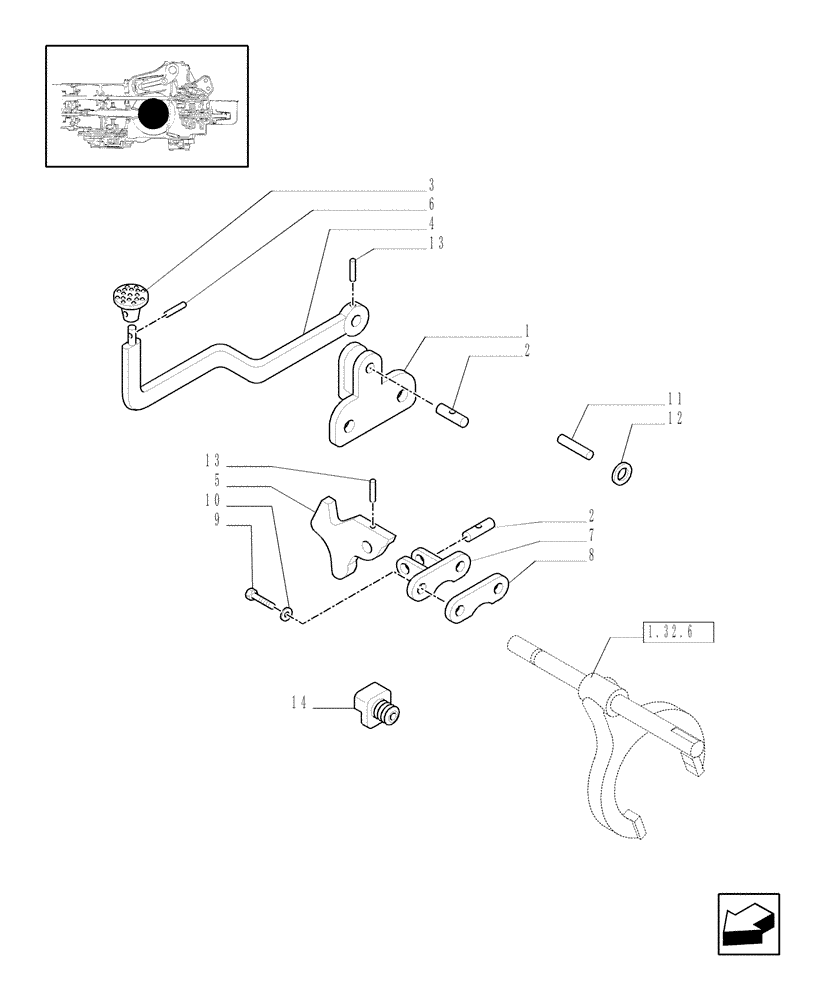

Запчасти Case IH JX70 (1.32.7) - DIFFERENTIAL LOCK CONTROL (03) - TRANSMISSION

1

5089683

SUPPORT

1шт.

2

567360

PIN,10mm OD x 33mm L

2шт.

3

87395998

RUBBER PAD

1шт.

4

5089681

ARM

1шт.

5

5089682

SPACER

1шт.

6

13904570

ROLL PIN,M4 x 18, Coiled

1шт.

7

5085538

SUPPORT

1шт.

8

5114582

SHIM,25mm OD x 0.5mm Thk

6шт.

9

10923221

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

2шт.

11

5088700

PROTECTION

1шт.

12

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

13

13900070

ROLL PIN,M3 x 26, Coiled

1шт.

14

5094886

BELLOWS

W/CAB

1шт.
