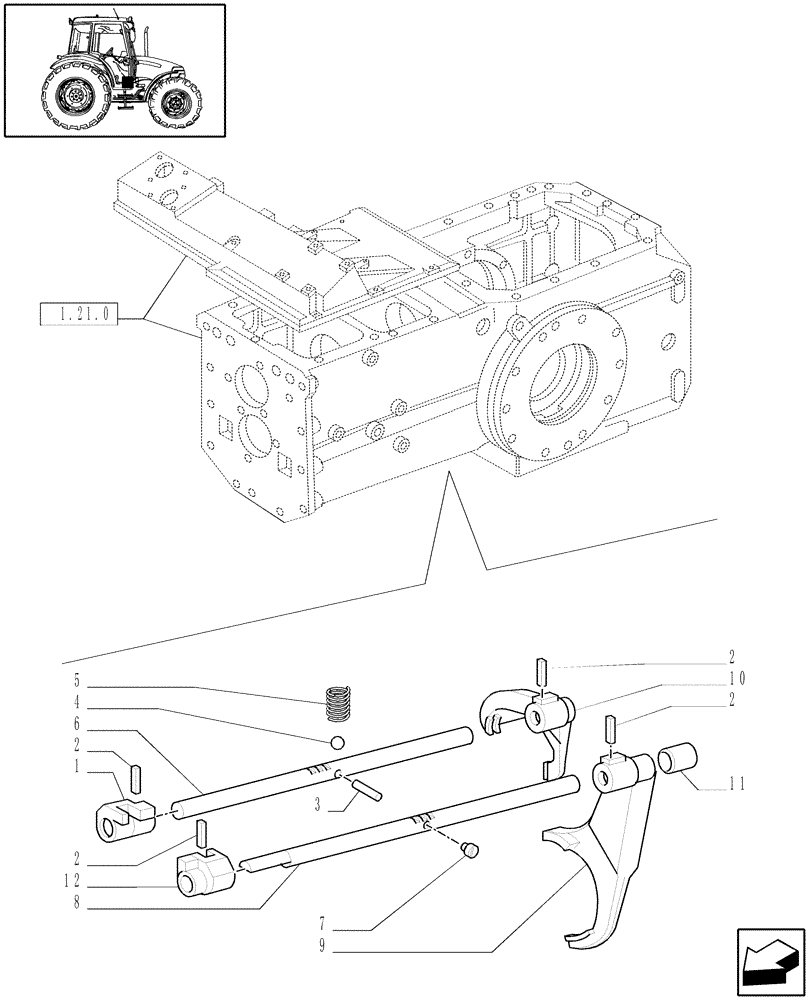

Запчасти Case IH JX70 (1.32.2[02]) - CENTRAL REDUCTION GEARS CONTROLS (03) - TRANSMISSION

1

5089407

DETENT

1шт.

2

13907770

ROLL PIN,M5 x 32, Coiled

4шт.

3

5110264

PAWL,8.5mm OD x 26.5mm L

1шт.

4

20063390

BALL,8.73mm OD

1шт.

5

4994342

SPRING,8mm OD x 30mm OAL

2шт.

6

5127897

SHIFT RAIL

JXD60, JX70, JX80, JX90

1шт.

6

5131682

SHIFT RAIL

JX95

1шт.

With VAR.115 - 382valid for JX60, JX70, JX80, JX90 also

1шт.

With VAR.319 valid for JX80, JX90 also

1шт.

7

10152311

PLUG

1шт.

8

5089410

ROD

JX60, JX70, JX80, JX90

1шт.

8

5089466

SHIFT RAIL

JX95

1шт.

9

5125823

SHIFTER FORK

1шт.

10

5089406

FORK

JX60, JX70, JX80, JX90

1шт.

With VAR.382 Valid for JX60, JX70 only

1шт.

10

5092219

SHIFTER FORK

JX95

1шт.

With VAR.382 Valid for JX80, JX90 Also

1шт.

11

13604211

SPACER,6.5mm ID x 15mm OD x 15mm L

6.5 x 15 x 15

1шт.

12

5095312

DOG

1шт.
