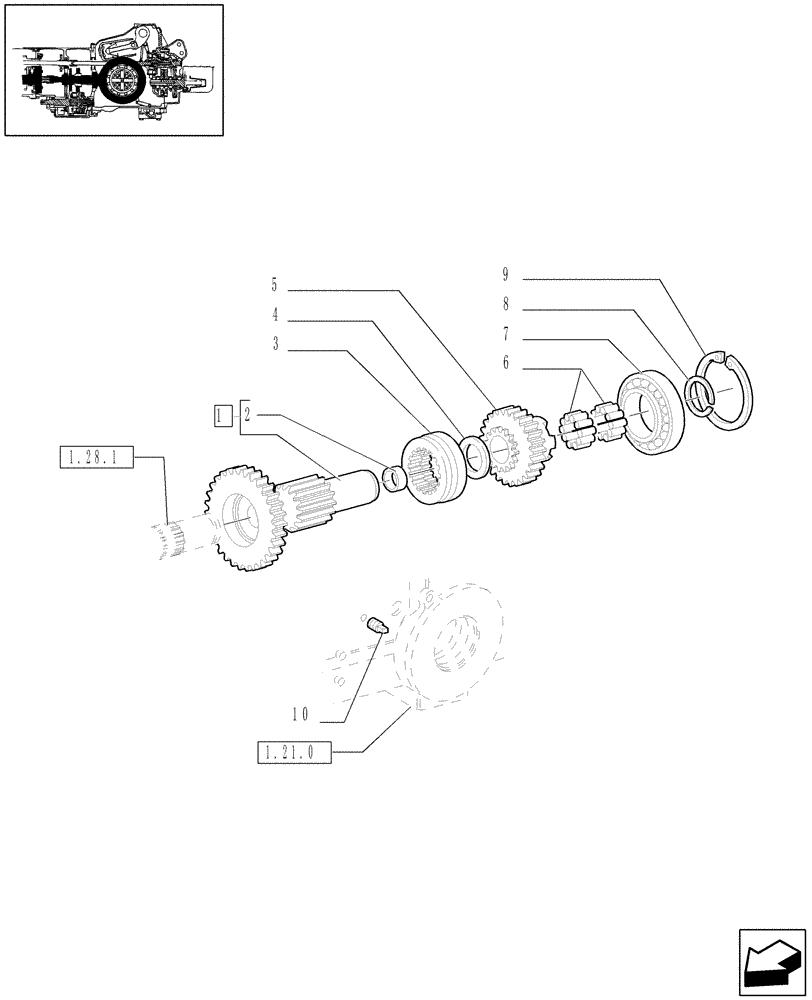

Запчасти Case IH JX70 (1.32.1/04[02]) - (VAR.108) 12X12 (40KM/H) TRANSMIS. WITH VENTRAL FRONT BRAKE & LIMITED SLIP-DRIVE SHAFT AND GEARINGS (03) - TRANSMISSION

1

5176776

SHAFT

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25x28.53x18

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

5

5125013

GEAR

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

42x47x27

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

5117076

CIRCLIP,M47, Ext

D=47

1шт.

9

11075476

SNAP RING,M110, Int

1шт.

10

14323911

PLUG

M10 x 1.25

1шт.
