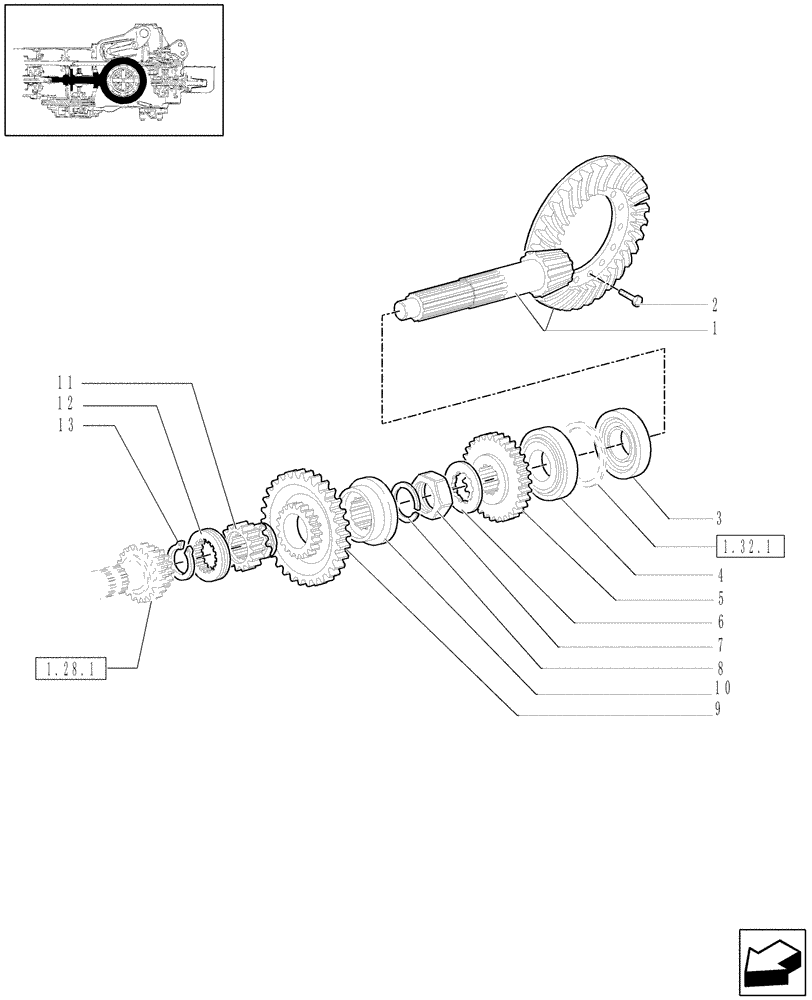

Запчасти Case IH JX70 (1.32.1/04[01]) - (VAR.108) 12X12 (40KM/H) TRANSMISSION WITH VENTRAL FRONT BRAKE & LIMITED SLIP - BEVEL GEAR PAIR (03) - TRANSMISSION

1

5149445

BEVEL GEAR

(9/43)

1шт.

2

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

3

5138664

TAPERED BEARING,45mm ID x 100mm OD x 38.25mm W

45x100x38.2

1шт.

4

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

5

5125005

DRIVEN GEAR

1шт.

6

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

7

5117744

NUT

1шт.

8

5127762

HALF-RING

2шт.

9

5125007

DRIVEN GEAR

1шт.

10

5128016

SPACER,10T

1шт.

11

5125009

SPLINED COUPLING,10T Internal / 23T External

1шт.

12

5125010

SLEEVE,23T

1шт.

13

11068976

SNAP RING,M42, Ext

1шт.
