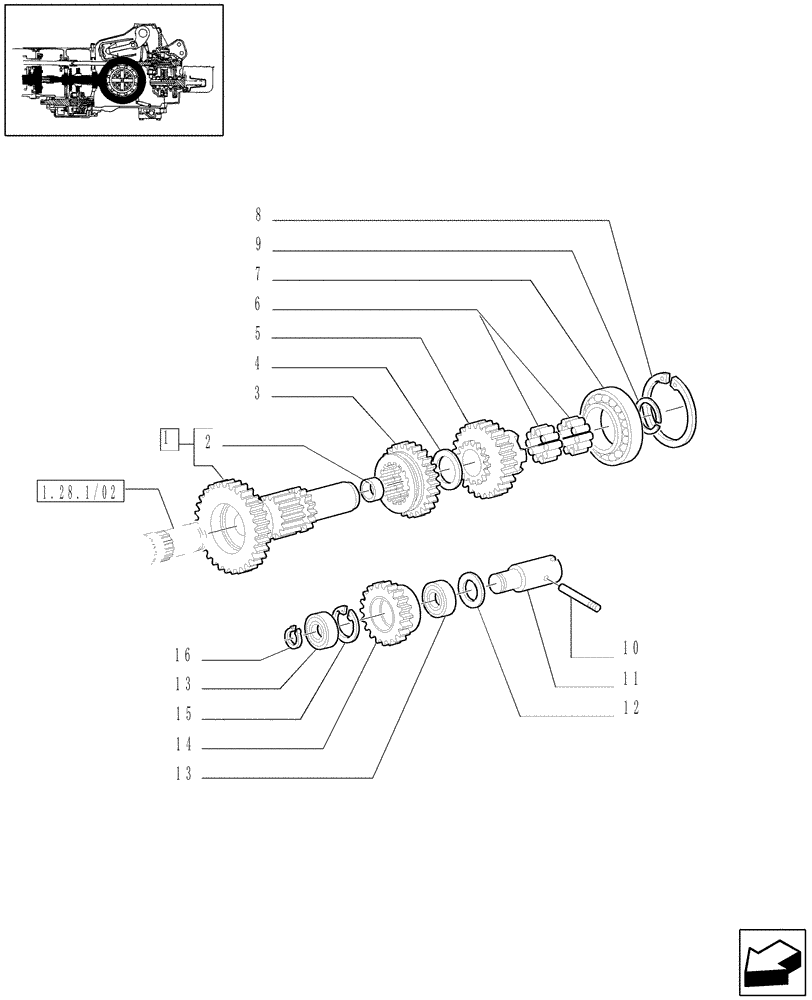

Запчасти Case IH JX70 (1.32.1/03[02]) - (VAR.116) 12X4 (30KM/H) SYNCHROMESH TRANSMISSION - DRIVE SHAFT AND GEARINGS (03) - TRANSMISSION

1

5176776

SHAFT

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25x28.53x18

1шт.

3

5145164

GEAR

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

5

5125013

GEAR

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

42x47x27

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

301652

SNAP RING,M110 x 4mm, Internal

1шт.

9

5117076

CIRCLIP,M47, Ext

D=47

1шт.

10

5152965

CLUTCH CENTRALIZER,M10 x 1.25, 80.5mm L

1шт.

11

5153087

PIN,32mm OD x 106.5mm L

Reverse

1шт.

12

5153088

THRUST WASHER,25.1mm ID x 33mm OD x 1.5mm Thk

1шт.

13

20715580

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

25x52x15

2шт.

14

5145166

GEAR

1шт.

15

11060576

SNAP RING,M52, Int

1шт.

16

5117075

SNAP RING

1шт.
