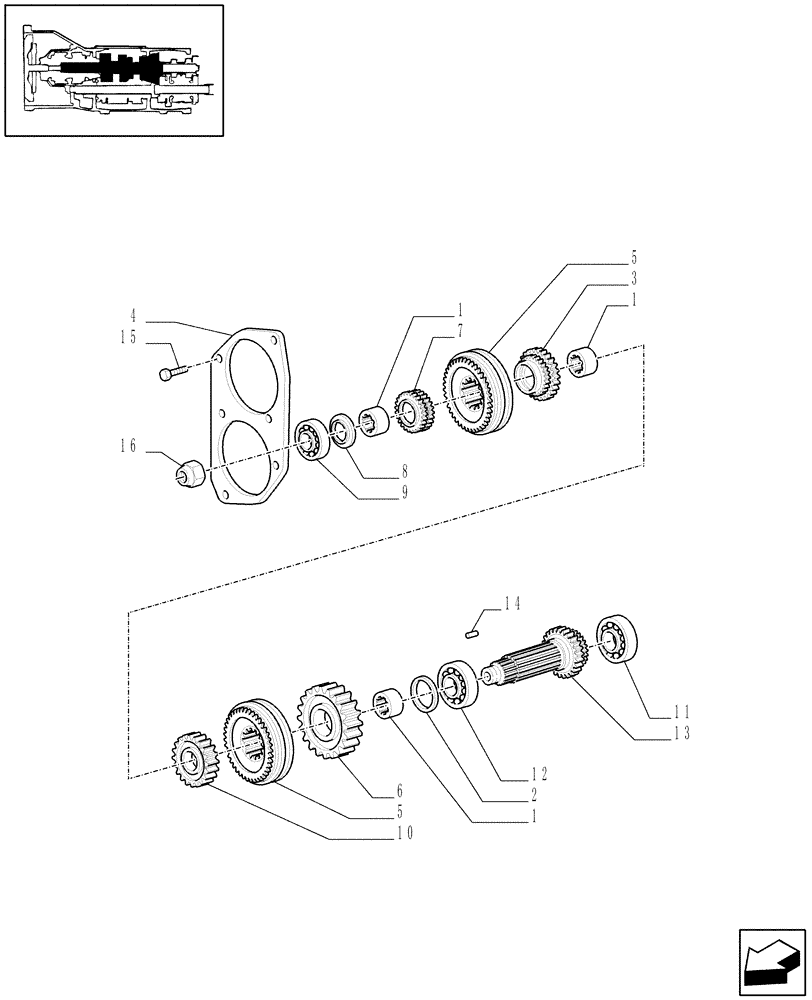

Запчасти Case IH JX70 (1.28.1/04[03A]) - (VAR.382) 20 X 12 COMBINATA ( SYNCHRO SHUTTLE + CREEPER) - SHAFTS AND GEARS - D6967 (03) - TRANSMISSION

1

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

2

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

3

5179673

DRIVEN GEAR

1шт.

4

5117552

COVER

1шт.

5

5188093

SYNCHRONIZER

2шт.

6

5172047

DRIVEN GEAR

52T and 38T

1шт.

7

5172050

DRIVEN GEAR

1шт.

8

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

9

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

10

5172048

DRIVEN GEAR

1шт.

11

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

1шт.

12

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

2шт.

13

5125045

SHAFT

1шт.

Only for JX60, JX70D Models

1шт.

13

5160028

SHAFT

1шт.

Only for JX80, JX90, JX95 Models

1шт.

14

5145131

RIGID TUBE

1шт.

15

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

16

5137678

RING NUT

1шт.
