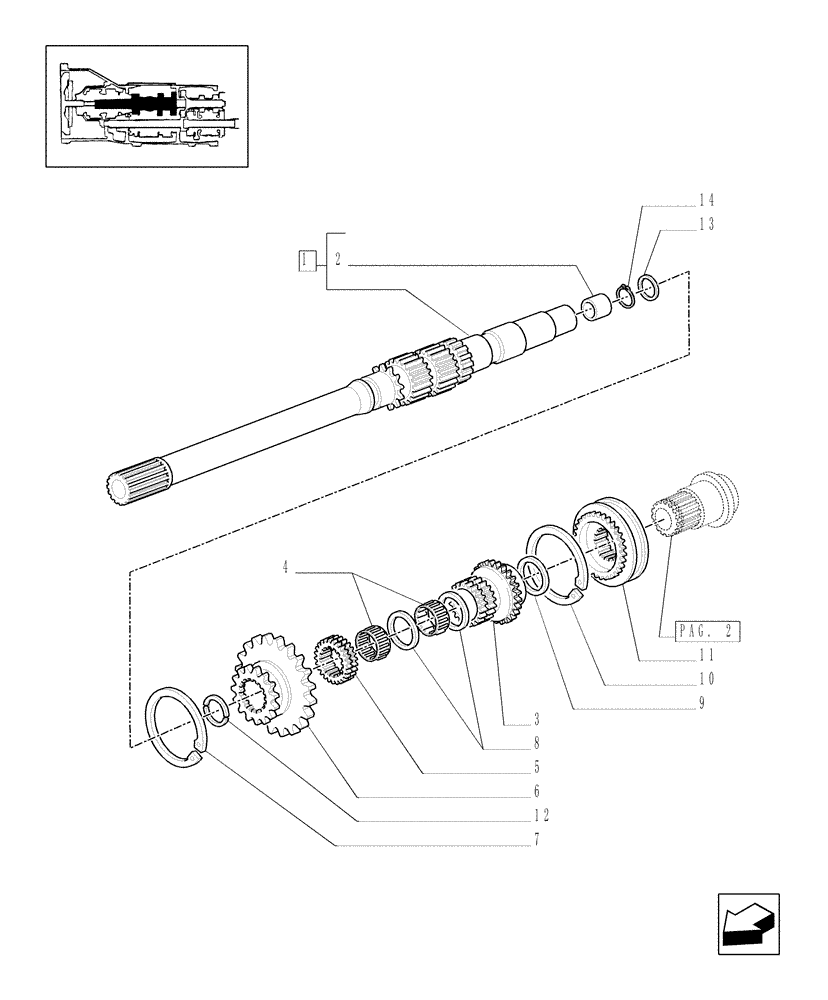

Запчасти Case IH JX70 (1.28.1/01[01]) - (VAR.113-115) 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - SHAFTS AND GEARS (03) - TRANSMISSION

1

5097581

SHAFT

JX60, JX70, JX80, JX90

1шт.

1

5097576

SHAFT

JX95

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

3

5175962

SPLINED COUPLING

1шт.

4

5160928

NEEDLE BEARING

2шт.

5

5175960

GEAR,16T Internal / 23T External

1шт.

6

5175967

GEAR

1шт.

7

80370009

CIRCLIP

1шт.

8

5160929

SNAP RING,55.3mm OD x 1.5mm Width

D=53

2шт.

9

5182075

WASHER,42.13mm ID x 56mm OD x 4mm Thk

1шт.

10

44850564

SPARE PART

SPARE PART

1шт.

11

5186638

SYNCHRONIZER

1шт.

12

5175959

HALF-RING

JX95

1шт.

13

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

14

370008

SNAP RING,M50, Ext

1шт.
