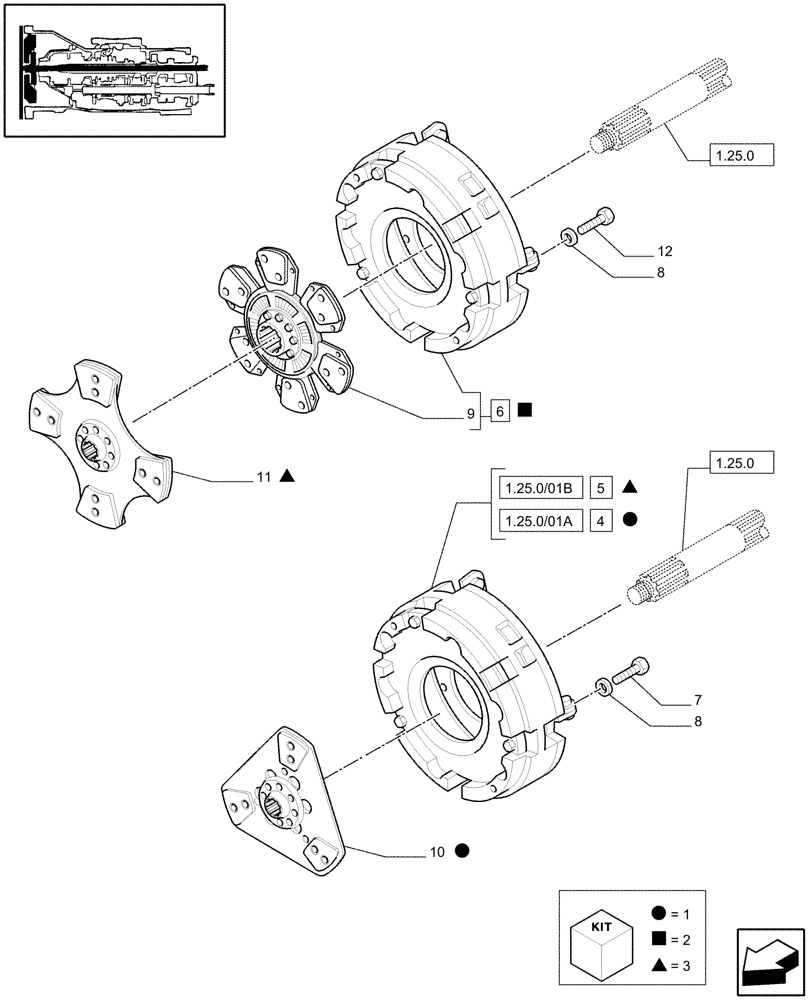

Запчасти Case IH JX70 (1.25.0/01[01A]) - (VAR.000) SINGLE LEVER PTO - CLUTCH - D6859 (03) - TRANSMISSION

1

5097958

CLUTCH

Assy, JX60, JX70

1шт.

2

84317689

CLUTCH

Assy, JX80, JX90

1шт.

3

5097881

CLUTCH

Assy, JX95

1шт.

4

5097959

CLUTCH

JX60, JX70

1шт.

4

5097959R

REMAN-CLUTCH ASSY

JX60, JX70

1шт.

4

5097959C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

5

5097875

CLUTCH

JX80

1шт.

5

5097875R

REMAN-CLUTCH ASSY

JX80

1шт.

5

5097875C

CORE-CLUTCH ASSEMBLY

Core-Clutch Assy, Return Part Number, Clutch

1шт.

6

84317690

CLUTCH

JX80, JX90

1шт.

6

84317690R

REMAN-CLUTCH ASSY

JX80, JX90

1шт.

6

84317690C

CORE-CLUTCH ASSEMBLY

Return Part Number

1шт.

7

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

JX60, JX70, JX80, JX90

6шт.

7

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

JX95

6шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

JX60, JX70, JX80, JX90

6шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

JX95

6шт.

9

5189825

CLUTCH PLATE

JX95

1шт.

9

5189825R

REMAN-CLUTCH PLATE

JX95

1шт.

9

5189825C

CORE-CLUTCH PLATE

Return Part Number

1шт.

9

84177329

CLUTCH PLATE,280mm OD

JX80, JX90

1шт.

10

47134882

CLUTCH PLATE,280mm OD

JX60, JX70

1шт.

10

47134882R

REMAN-CLUTCH PLATE

JX60, JX70

1шт.

10

47134882C

CORE-CLUTCH PLATE

Return Part Number

1шт.

11

47134874

CLUTCH PLATE,280mm OD

JX80, JX90, JX95

1шт.

11

47134874R

REMAN-CLUTCH PLATE

JX80, JX90, JX95

1шт.

11

47134874C

CORE-CLUTCH PLATE

Return Part Number

1шт.
