(1.21.0/01[02B]) - (VAR.113-115) 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - TRACTOR BODY - D6864

Запчасти Case IH JX70 (1.21.0/01[02B]) - (VAR.113-115) 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - TRACTOR BODY - D6864 (03) - TRANSMISSION

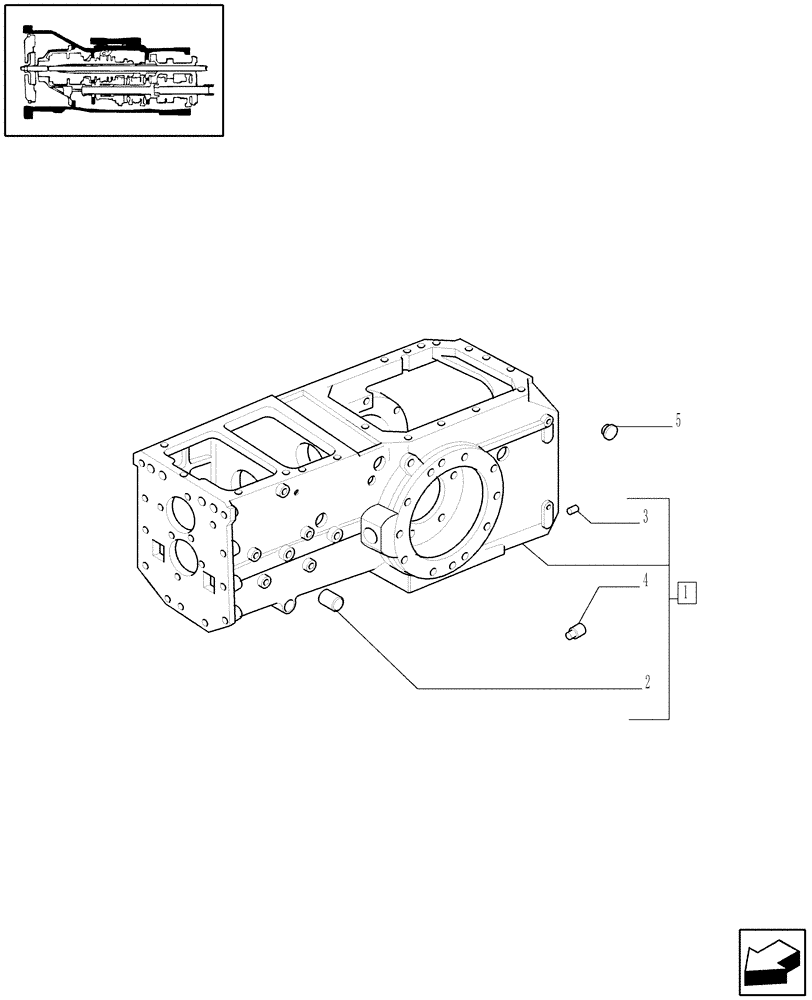

Схема запчастей Case IH JX70 - (1.21.0/01[02B]) - (VAR.113-115) 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - TRACTOR BODY - D6864 (03) - TRANSMISSION
3
4
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84365339

TRANSMISSION HOUSING

ASSY, 2WD

1шт.

1

84484294

TRANSMISSION HOUSING

ASSY, 4WD

1шт.

2

5118942

BUSHING,30.05mm ID x 34mm OD x 30mm L

2шт.

3

10839810

DOWEL,12mm OD x 18mm L

M12 x 18

2шт.

3

5119529

DOWEL,15mm OD x 22mm L

M15 x 22

2шт.

4

5163325

DOWEL

2шт.

5

10159004

PLUG,M25, Tapered

2шт.

Выбрано товаров: 7
