(1.21.0/01[02]) - (VAR.113-115) 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - TRACTOR BODY - C5712

Запчасти Case IH JX70 (1.21.0/01[02]) - (VAR.113-115) 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - TRACTOR BODY - C5712 (03) - TRANSMISSION

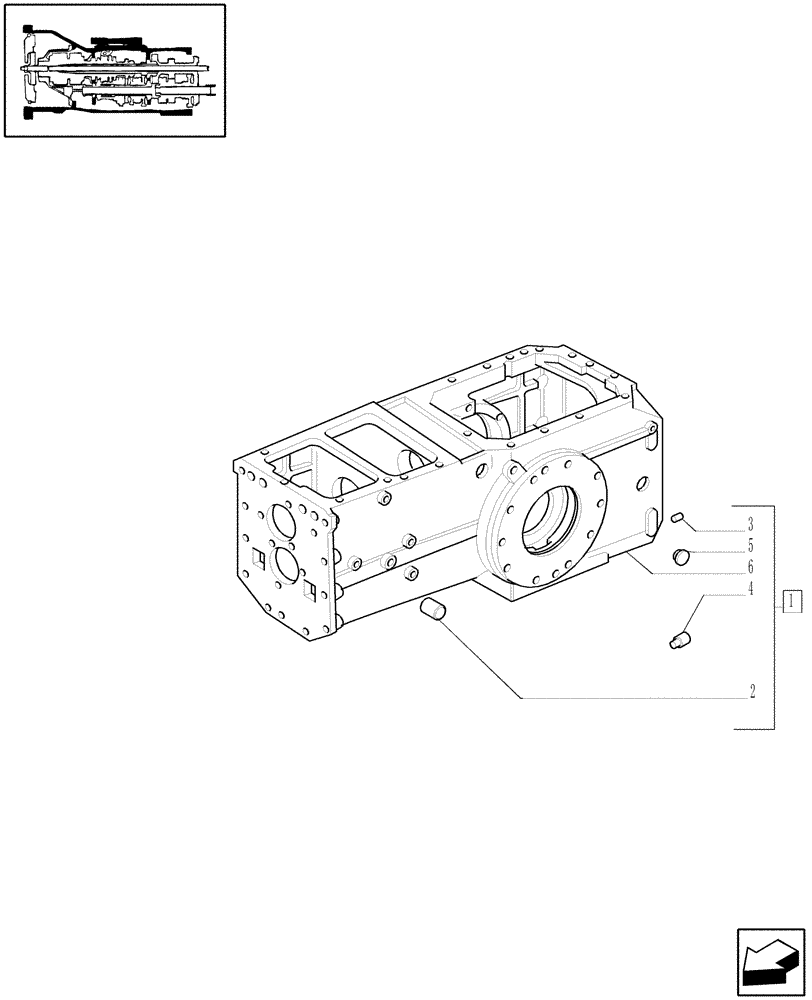

Схема запчастей Case IH JX70 - (1.21.0/01[02]) - (VAR.113-115) 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - TRACTOR BODY - C5712 (03) - TRANSMISSION
2
3
1
5
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5089666

HOUSING

1шт.

2

5118942

BUSHING,30.05mm ID x 34mm OD x 30mm L

1шт.

3

10839810

DOWEL,12mm OD x 18mm L

M12 x 18

2шт.

3

10839910

DOWEL,15mm OD x 20mm L

M15x20

2шт.

4

5163325

DOWEL

2шт.

5

10159004

PLUG,M25, Tapered

2шт.

6

5089401

HOUSING

1шт.

Выбрано товаров: 7
