Запчасти Case IH JX70 (1.21.0[02B]) - TRACTOR BODY - CAPS AND COVERS - D6660 - C6864 (03) - TRANSMISSION

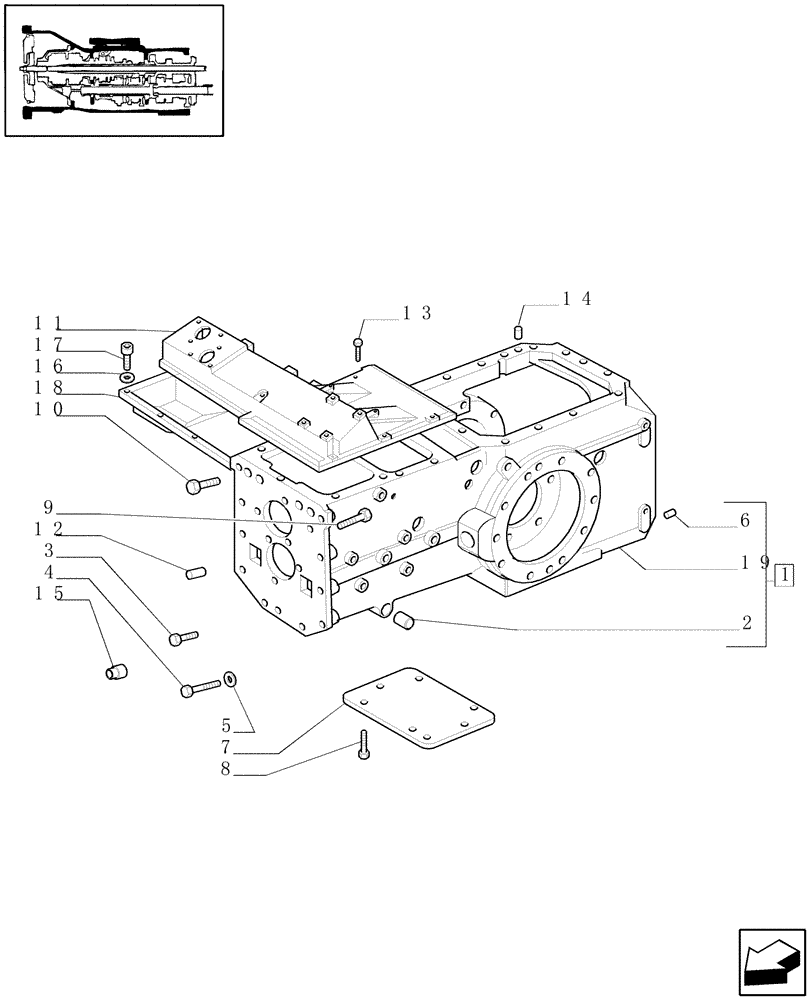

Схема запчастей Case IH JX70 - (1.21.0[02B]) - TRACTOR BODY - CAPS AND COVERS - D6660 - C6864 (03) - TRANSMISSION
2
3
14
6
19
8
17
1
12
7
11
5
16
10
15
13
4
9
18

Артикул

Название

Примечание

Количество

1

84147586

HOUSING

ASSY, 2WD

1шт.

2

5118942

BUSHING,30.05mm ID x 34mm OD x 30mm L

1шт.

3

14331334

HEX SOC SCREW,M12 x 1.25 x 40mm, Cl 10.9, Full Thd

JX60, JX70, JX80, JX90

3шт.

4

87305939

HEX SOC SCREW,M12 x 1.25 x 105mm

JX95

3шт.

5

12601574

WAVE WASHER,Wave, M13

JX95

2шт.

6

10839810

DOWEL,12mm OD x 18mm L

2шт.

7

5195411

COVER

2WD

1шт.

8

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2WD

6шт.

9

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

10

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

13шт.

11

5089402

COVER

1шт.

12

10839910

DOWEL,15mm OD x 20mm L

2шт.

13

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

8шт.

14

5119529

DOWEL,15mm OD x 22mm L

2шт.

15

14328504

PLUG

VAR.000

1шт.

16

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

6шт.

17

14305111

SCREW,Cheese Hd, M6 x 12mm

6шт.

18

5089709

GUARD

1шт.

19

84147585

HOUSING

1шт.

Выбрано товаров: 19
