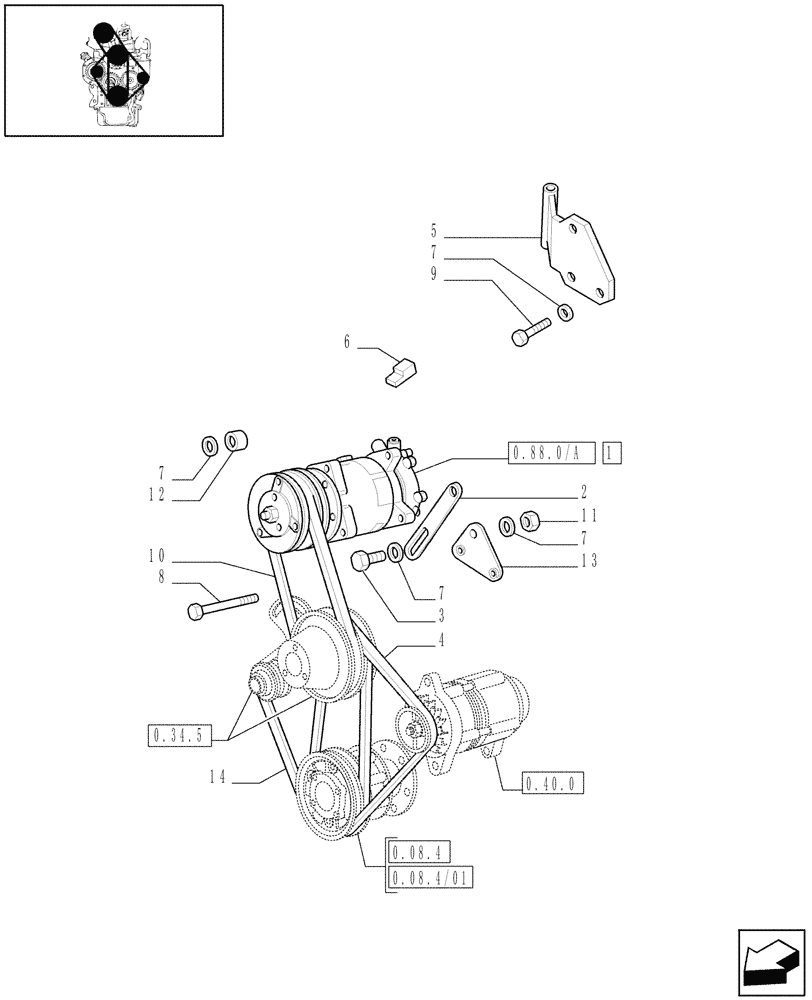

Запчасти Case IH JX70 (0.88.0/02[02]) - (VAR.641-958) AIR CONDITIONING UNIT - BELTS & PULLEYS - D6847 (01) - ENGINE

1

84316006

AIRCOND. COMPRESSOR

1шт.

2

5095615

TENSIONER

JX70

1шт.

Bracket Dimension from end of sloted hole to center 130mm and Length of slot 60mm

1шт.

2

5093993

TENSIONER

JX60, JX80, JX90, JX95

1шт.

Bracket Dimension from end of sloted hole to center 150mm and Length of slot 60mm

1шт.

3

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

4

87643267

SET OF BELTS,1150.00 mm L

V-Belt, x 8 tooth, Alternator

1шт.

Includes two Belts

1шт.

5

5094419

SUPPORT

1шт.

6

87705127

WIRE CONNECTOR

1шт.

7

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

7шт.

8

15972321

SCREW,Hex, M10 x 1.25 x 125mm, Cl 8.8

3шт.

9

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

10

5140009

V-BELT,10.00 mm W x 1025.00 mm L

L=1025 mm, A/C, Serial Range: -HFJ006816

1шт.

11

12164714

NUT,M10 x 1.25, Cl 8

2шт.

12

5085904

SPACER,10.3mm ID x 20mm OD x 9mm L

JX60, JX8

1шт.

13

87622617

BELT TENSIONER

1шт.

14

5094418

V-BELT,10.00 mm W x 1050.00 mm L

Fan, Start Serial: HFJ006817

1шт.

14

5140010

V-BELT,10.00 mm W x 1075.00 mm L

L=1075 mm, Fan

1шт.
