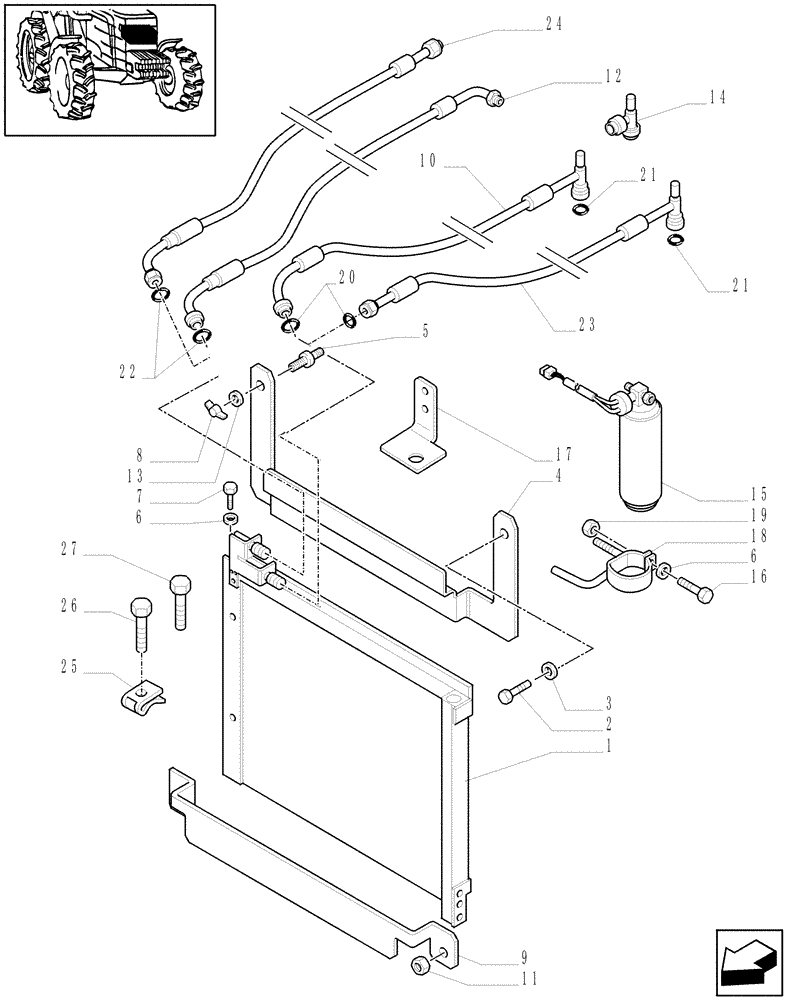

Запчасти Case IH JX70 (0.88.0/02[01]) - (VAR.641-958) AIR CONDITIONING UNIT - CONDENSER - D6847 (01) - ENGINE

1

84201602

CONDENSER

, Serial Range: -C7012

1шт.

1

84342887

CONDENSER

, Start Serial: D7012

1шт.

2

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

3

10569474

LOCK WASHER,10.2mm ID x 16mm ID x 2.5mm Thk

M10

2шт.

4

84359949

SUPPORT

Condenser, Upper

1шт.

5

5174191

SCREW

, Serial Range: -C7012

1шт.

6

12035670

LOCK WASHER

M6

4шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

8

10102004

WING NUT

, Serial Range: -C7012

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

2шт.

10

5091890

HOSE

& Tube Assy (Compressor to Condenser), Incl. 20, 21, Serial Range: -C7012

1шт.

11

84359948

SUPPORT

1шт.

12

5095483

HOSE

& Tube Assy (Condenser to Dryer), Incl.22, Serial Range: -C7012

1шт.

13

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

14

5092979

TEE

1шт.

15

5165615

RECEIVER-DRYER

1шт.

16

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

17

84359950

SUPPORT

Condenser Retainer

1шт.

18

5093231

SUPPORT

1шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

20

14453083

O-RING

1шт.

21

14453283

O-RING,14mm ID x 1.78mm Width

1шт.

22

14452883

O-RING,7.65mm ID x 1.78mm Width

1шт.

23

5083432

HOSE

Compressor to Condenser, Incl. 20, 21, Start Serial: D7012

1шт.

24

5083431

HOSE

Condenser to Dryer, Incl. 22, Start Serial: D7012

1шт.

25

87720104

CLIP

, Start Serial: D7012

1шт.

26

15688304

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 16mm

, Start Serial: D7012

1шт.

27

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D7012

1шт.
