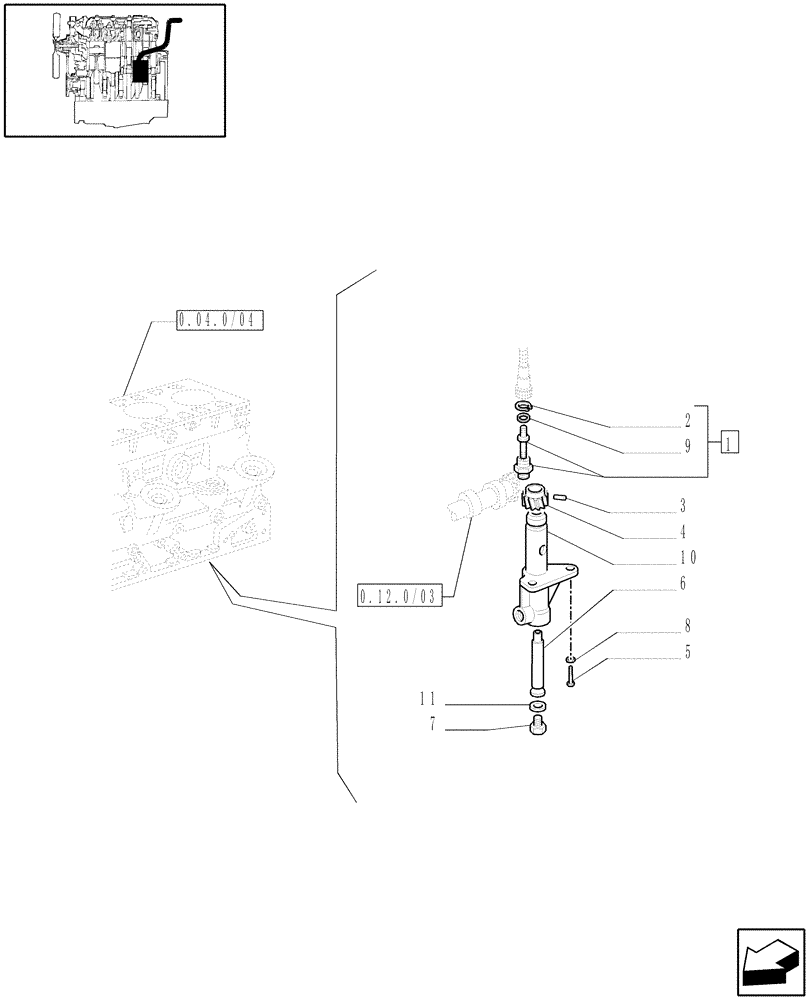

Запчасти Case IH JX70 (0.42.0/04) - (VAR.319-747) TTF ENGINE TIER2 - TACHOMETER DRIVE (01) - ENGINE

1

500303538

ADAPTER

1шт.

2

13400576

SNAP RING

1шт.

3

4605293

PIN

1шт.

4

4599726

DRIVEN GEAR

1шт.

5

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

4613297

SPINDLE

1шт.

7

10278340

PLUG,M28 x 1.5 x 11, Brass

1шт.

8

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

40102813

GASKET

M6 x 15 x 4

1шт.

10

4807305

SUPPORT

1шт.

11

10296260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

1шт.
