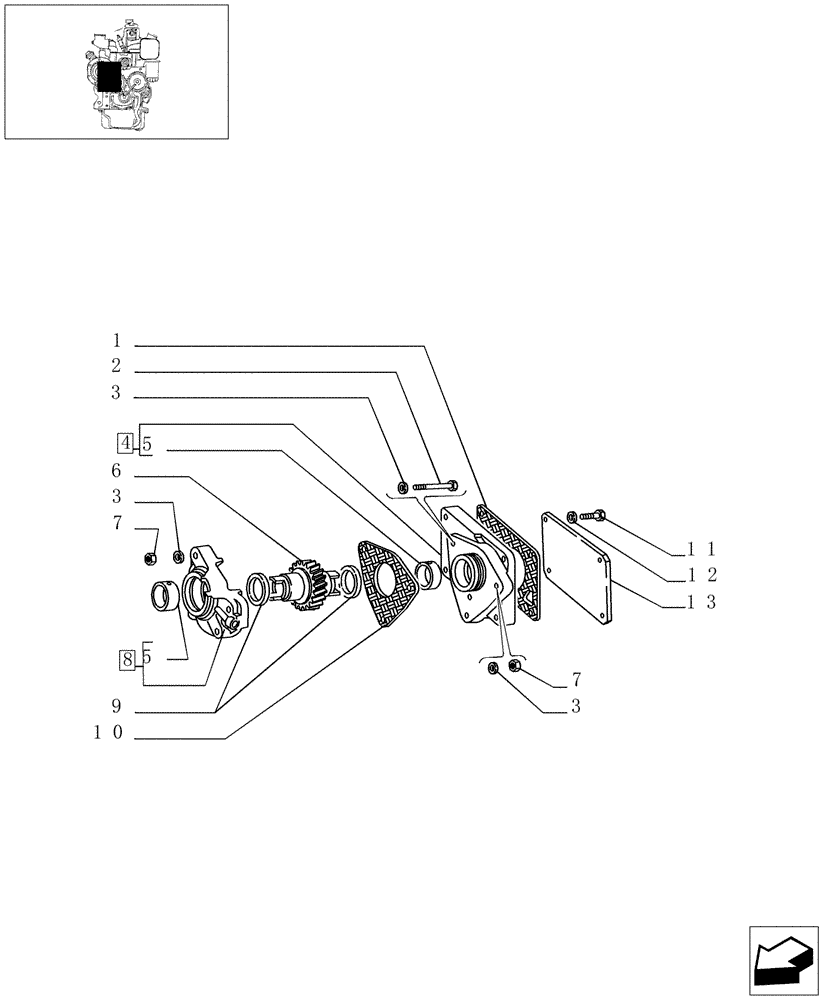

Запчасти Case IH JX65 (0.35.0) - BELT PULLEY DRIVE COVER (01) - ENGINE

1

500378759

SEAL

1шт.

2

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

3

17089471

WASHER

D=16 x 8 mm, Thk=1.4 mm

6шт.

4

4788084

SUPPORT

Assy

1шт.

5

4788087

BUSHING,36.57mm ID x 40.98mm OD x 17.2mm L

2шт.

6

4769590

SHAFT

29 teeth

1шт.

6

84420573

GEAR,25 Teeth

25 teeth, if needed

1шт.

7

43362

NUT,M8 x 1.25, Cl 10

6шт.

8

4771242

SUPPORT

Assy

1шт.

9

4667452

WASHER,37.1mm ID x 55mm OD x 1.5mm Thk

2шт.

10

4851004

GASKET,0.8mm Thk

1шт.

11

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

4шт.

12

12035670

LOCK WASHER

M6

4шт.

13

564530

COVER

1шт.
