Запчасти Case IH JX65 (0.34.7/02[01]) - (VAR.641-958) AIR CONDITIONING - FAN AND BELTS (01) - ENGINE

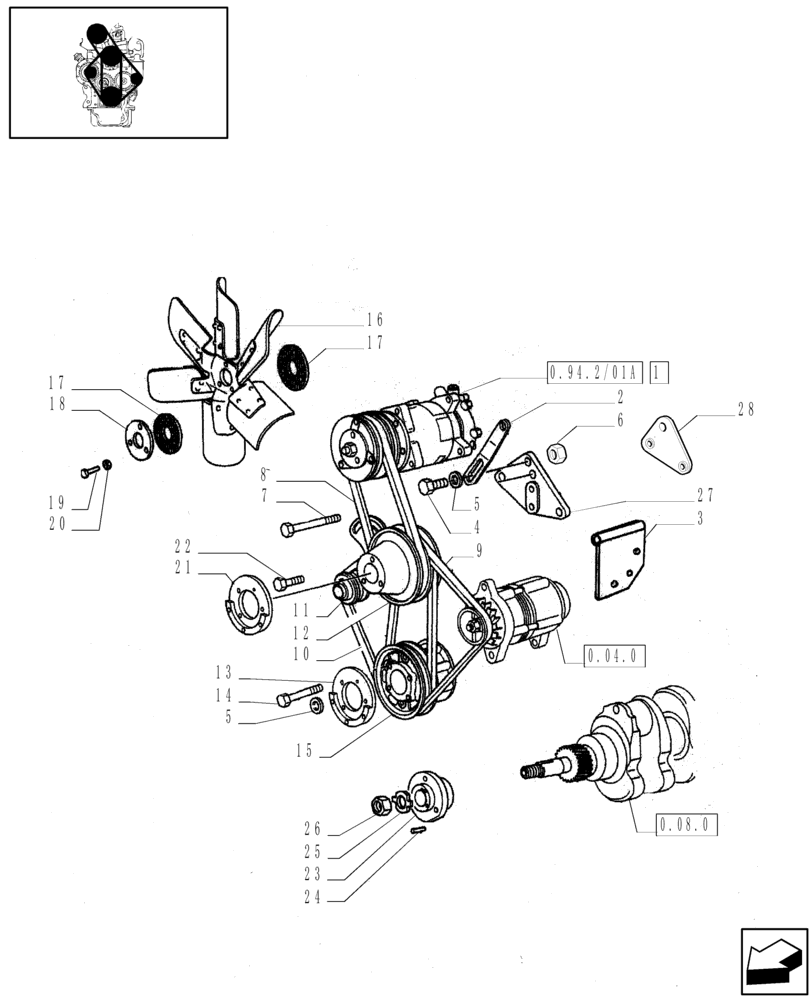

Схема запчастей Case IH JX65 - (0.34.7/02[01]) - (VAR.641-958) AIR CONDITIONING - FAN AND BELTS (01) - ENGINE
3
12
4
5
13
21
27
2
9
16
19
14
28
23
1
6
26
22
18
7
24
11
0.94.2/01a
8
5
10
25
0.08.0
0.04.0
15
17
17
20

Артикул

Название

Примечание

Количество

1

84316006

AIRCOND. COMPRESSOR

1шт.

2

5095615

TENSIONER

1шт.

Bracket Dimension from end of sloted hole to center 130mm and Length of slot 60mm

1шт.

3

5094419

SUPPORT

1шт.

4

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

5

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

4шт.

6

12164711

NUT,M10 x 1.25, Cl 8

2шт.

7

15972321

SCREW,Hex, M10 x 1.25 x 125mm, Cl 8.8

1шт.

8

5140009

V-BELT,10.00 mm W x 1025.00 mm L

L=1025 mm, A/C

1шт.

9

4796327

BELT

L=1132 mm x 9 x 7 tooth, Alternator, JX55, JX65

1шт.

9

87643267

SET OF BELTS,1150.00 mm L

V-Belt, x 8 tooth, Alternator JX75, JX85, JX95

1шт.

Includes two Belts

1шт.

10

5094418

V-BELT,10.00 mm W x 1050.00 mm L

Fan, JX55, JX65, JX85, JX95

1шт.

10

5140010

V-BELT,10.00 mm W x 1075.00 mm L

L=1075 mm, Fan, JX75, JX85, JX95

1шт.

11

47033277

BELT TENSIONER

1шт.

12

5131057

PULLEY

1шт.

13

5092028

SPACER

1шт.

14

11288021

BOLT,Hex, M10 x 1.25 x 60, 8.8

3шт.

15

4619285

PULLEY

1шт.

16

4796434

FAN,6 Blades, 450mm OD

JX95

1шт.

16

99442104

FAN

JX55 - JX65

1шт.

16

99455862

FAN

JX75 - JX85

1шт.

17

574526

WASHER

2шт.

18

4584861

WASHER

1шт.

19

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

3шт.

20

11198079

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

3шт.

21

5121225

SPACER

1шт.

22

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

23

4655915

HUB

1шт.

24

14165470

LOCK PIN,M5 x 10, Slotted

1шт.

25

4600190

LOCK WASHER

1шт.

26

4600189

NUT,Hex, M30, 1.5 Pitch, 18mm High

1шт.

27

5130104

SUPPORT

, Serial Range: -C5661

1шт.

28

87622617

BELT TENSIONER

, Start Serial: D5661

1шт.

Выбрано товаров: 34
