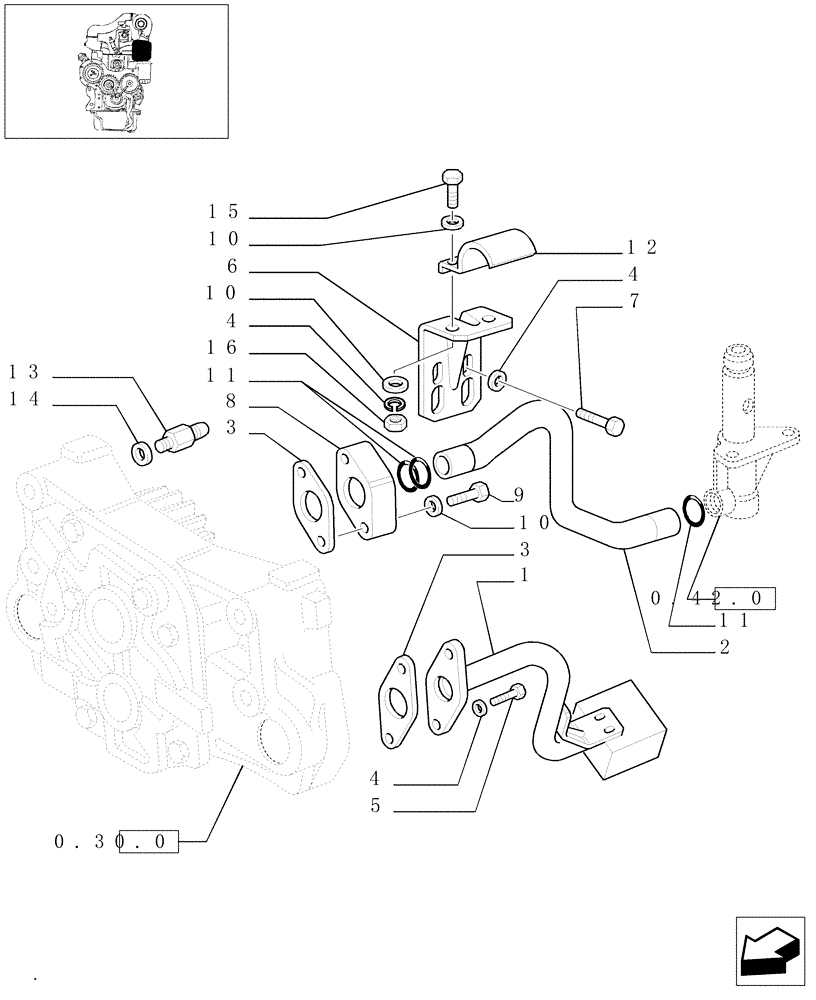

Запчасти Case IH JX65 (0.30.5[03]) - PIPING ENGINE OIL (AFTER S/N 13287) (01) - ENGINE

1

99460958

RIGID TUBE

1шт.

2

99465109

RIGID TUBE

1шт.

3

4852561

GASKET,0.8mm Thk

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

5

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

6

4775923

BRACKET

1шт.

7

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

8

4773265

HYD CONNECTOR

1шт.

9

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

10

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

6шт.

11

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

3шт.

12

4777690

HOSE CLIP

1шт.

13

4785501

HYD CONNECTOR,M10 x 1.25

M10 x 1.25

1шт.

14

561293

O-RING,12mm OD x 2.5mm Width

1шт.

15

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

89628098

LOCK NUT

M8

2шт.
