Запчасти Case IH JX65 (0.14.0/03[01]) - FUEL INJECTION PUMP ASSEMBLY (AFTER S/N 13287) (01) - ENGINE

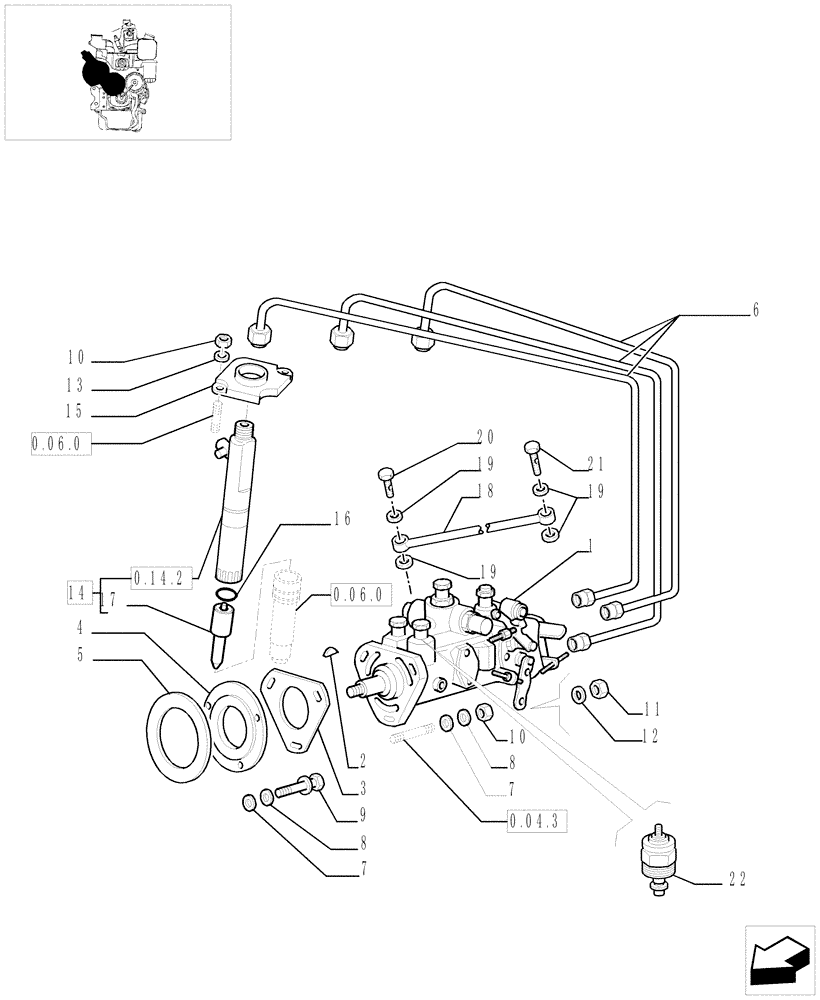

Схема запчастей Case IH JX65 - (0.14.0/03[01]) - FUEL INJECTION PUMP ASSEMBLY (AFTER S/N 13287) (01) - ENGINE
9
7
0
04
1
1
4
9
8
0
9
1
7
1
.
1
0
2
3
1
6
1
9
6
0
1
2
3
1
0
4
.
1
5
4
5
.
3
1
1
1
2
.
2
0
22
6
0
2
.
8
.
1
1
1
7
1
0
0
0
6
0
.
.
8

Артикул

Название

Примечание

Количество

1

504054473

FUEL INJECTION PUMP

JX55, Incl. 22

1шт.

1

504054473R

REMAN-INJECTION PUMP

JX55

1шт.

1

504054473C

CORE-INJECTION PUMP

Return Number

1шт.

1

504054474

FUEL INJECTION PUMP

JX65, Incl. 22

1шт.

1

504054474R

REMAN-INJECTION PUMP

JX65

1шт.

1

504054474C

CORE-INJECTION PUMP

Return Number

1шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

99441952

HOSE KIT

1шт.

7

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

9

500327046

SCREW

NA Only

1шт.

10

43362

NUT,M8 x 1.25, Cl 10

8шт.

11

17037721

NUT

M5

1шт.

12

11199271

LOCK WASHER

M5

1шт.

13

771326

WASHER,8.40mm ID

D=8 mm

6шт.

14

504054021

FUEL SYSTEM INJECTOR

JX55

3шт.

14

500307714

FUEL SYSTEM INJECTOR

JX65

3шт.

14

500307714R

REMAN-INJECT NOZZLE

JX65

3шт.

14

500307714C

CORE-NOZZLE, INJECT

Return Number

3шт.

15

4780612

BRACKET

3шт.

16

80066297

O-RING

D=8 x 1 x 26 mm

3шт.

17

504051747

NOZZLE

JX55

3шт.

17

99469341

NOZZLE

Assy, JX65

3шт.

18

99485806

RIGID TUBE

JX65

1шт.

19

2852057

SEALING WASHER,M8 x 12 x 1 Thk

JX65

4шт.

20

4753761

BANJO BOLT

JX65

1шт.

21

4833907

BANJO BOLT

JX65

1шт.

22

99478111

SOLENOID

1шт.

Выбрано товаров: 31
