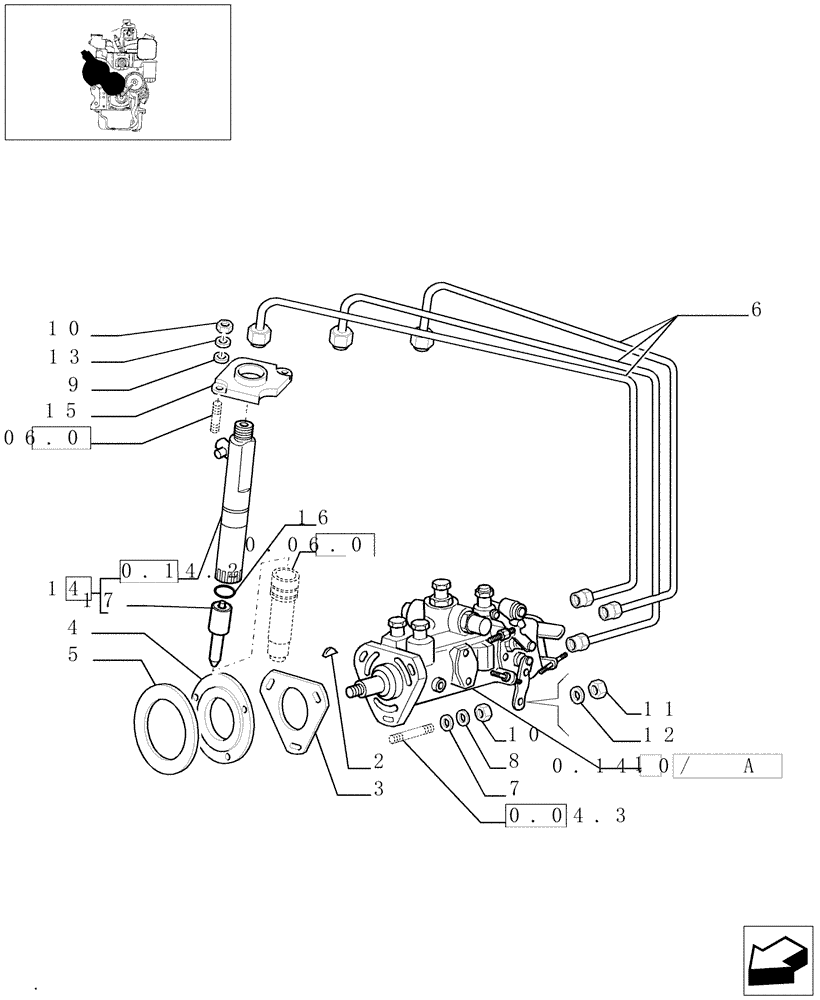

Запчасти Case IH JX65 (0.14.0[01]) - FUEL INJECTION PUMP ASSEMBLY (BEFORE S/N 13286) (01) - ENGINE

1

500324954

FUEL INJECTION PUMP

JX55 NA Only

1шт.

1

500324954R

REMAN-INJECTION PUMP

JX55 NA Only

1шт.

1

500324954C

CORE-INJECTION PUMP

Return Number

1шт.

1

99472100

FUEL INJECTION PUMP

JX55

1шт.

1

500324956

FUEL INJECTION PUMP

JX65 NA Only

1шт.

1

99472099

FUEL INJECTION PUMP

JX65

1шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

500303653

HOSE KIT

1шт.

7

12647124

WASHER,8.15mm ID x 20mm OD x 3mm Thk

JX55

3шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4, JX65

3шт.

8

17077921

LOCK WASHER

JX65

3шт.

9

17089574

SEALING WASHER

D=8 mm

6шт.

10

43362

NUT,M8 x 1.25, Cl 10

6шт.

11

15896421

NUT,M5, Cl 10

1шт.

12

11199271

LOCK WASHER

M5

1шт.

13

771326

WASHER,8.40mm ID

D=8 mm

6шт.

14

500317389

FUEL SYSTEM INJECTOR

JX55

3шт.

14

500317389R

REMAN-INJECT NOZZLE

JX55

3шт.

14

500317389C

CORE-NOZZLE, INJECT

Return Number

3шт.

14

500307714

FUEL SYSTEM INJECTOR

JX65

1шт.

14

500307714R

REMAN-INJECT NOZZLE

JX65

1шт.

14

500307714C

CORE-NOZZLE, INJECT

Return Number

1шт.

15

4780612

BRACKET

3шт.

16

14453589

O-RING,Cl II-18, 70 Duro, .739" ID x .070" Thk

3шт.

17

500317390

NOZZLE

JX55

3шт.

17

99469341

NOZZLE

Assy, JX65

1шт.
