Запчасти Case IH JX65 (0.08.2) - PISTON (BEFORE S/N 13286) (01) - ENGINE

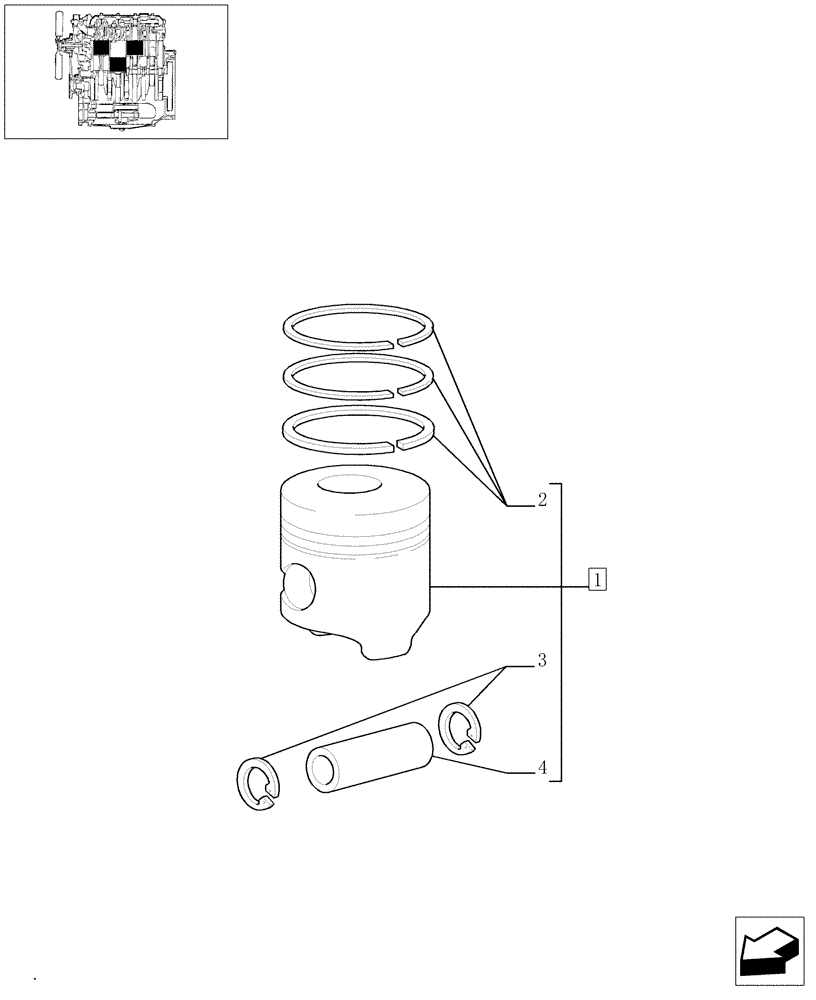

Схема запчастей Case IH JX65 - (0.08.2) - PISTON (BEFORE S/N 13286) (01) - ENGINE
3
1
4
2

Артикул

Название

Примечание

Количество

1

1940174

PISTON ASSY

JX55, JX75

3шт.

1

1940175

PISTON ASSY +0.6

JX55, JX75

3шт.

1

1931002

PISTON ASSY

JX65, JX85

3шт.

1

1931003

PISTON ASSY +0.6

JX65, JX85

3шт.

1

1931021

PISTON ASSY

JX95

4шт.

1

1931022

PISTON ASSY +0.6

JX95

4шт.

2

1940172

SET OF RINGS

JX55, JX75

3шт.

2

1940173

SET, PISTON RINGS

JX55, JX75

3шт.

2

1931000

SET OF RINGS

JX65, JX85

3шт.

2

1931001

SET, PISTON RINGS

JX65, JX85

3шт.

2

1931019

SET OF RINGS

JX95

4шт.

2

1931020

SET, PISTON RINGS

JX95

4шт.

3

4770452

SNAP RING,38mm ID

JX55, JX65, JX75, JX85

6шт.

3

4770452

SNAP RING,38mm ID

JX95

8шт.

4

4801851

PISTON PIN

JX55, JX65, JX75, JX85

3шт.

4

4801851

PISTON PIN

JX95

4шт.

Выбрано товаров: 16
