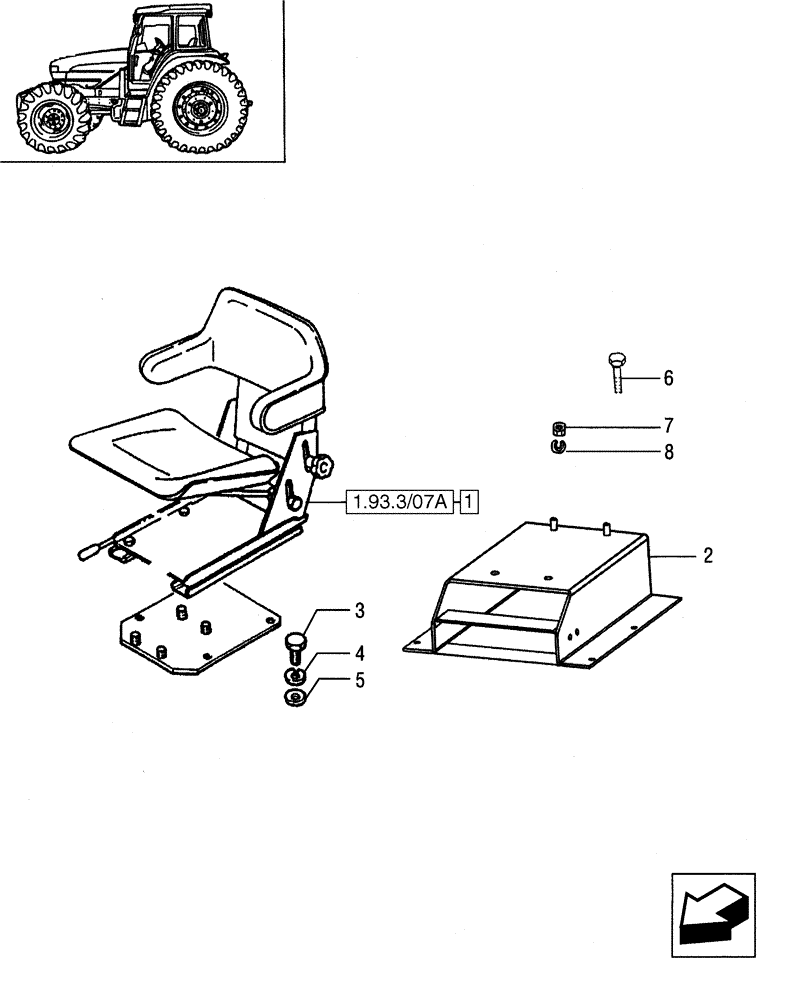

Запчасти Case IH JX65 (1.93.3/07) - (VAR.007) NORTH AMERICA VERSION - SEAT, SUPPORT (10) - OPERATORS PLATFORM/CAB

1

5091981

DRIVER SEAT

1шт.

2

5093531

SUPPORT

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

5

14497501

WASHER

8 x 17 x 1.6

4шт.

6

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12164711

NUT,M10 x 1.25, Cl 8

2шт.

8

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.
