Запчасти Case IH JX65 (1.93.3/04) - (VAR.685) DELUXE FABRIC SEAT WITH BELTS, SUPPORT (10) - OPERATORS PLATFORM/CAB

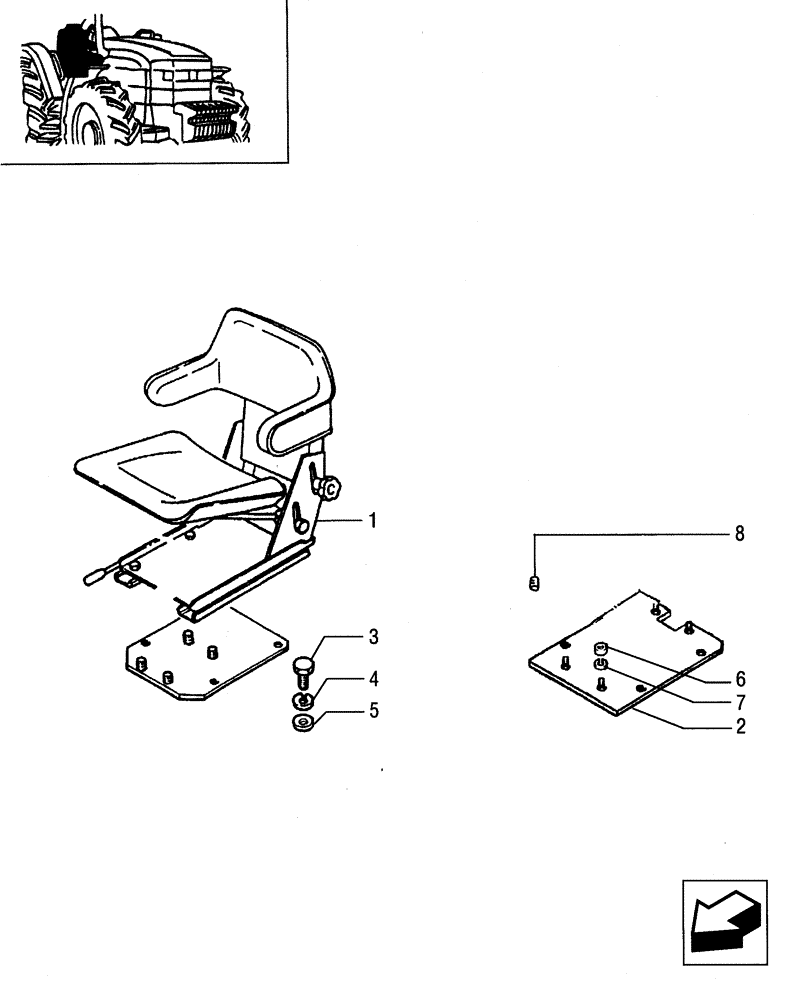

Схема запчастей Case IH JX65 - (1.93.3/04) - (VAR.685) DELUXE FABRIC SEAT WITH BELTS, SUPPORT (10) - OPERATORS PLATFORM/CAB
3
2
8
1
6
4
7
5

Артикул

Название

Примечание

Количество

1

5091998

DRIVER SEAT

1шт.

2

5093531

SUPPORT

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

5

14497501

WASHER

4шт.

6

12164711

NUT,M10 x 1.25, Cl 8

4шт.

7

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

8

5089481

CAP,17mm OD

4шт.

Выбрано товаров: 8
