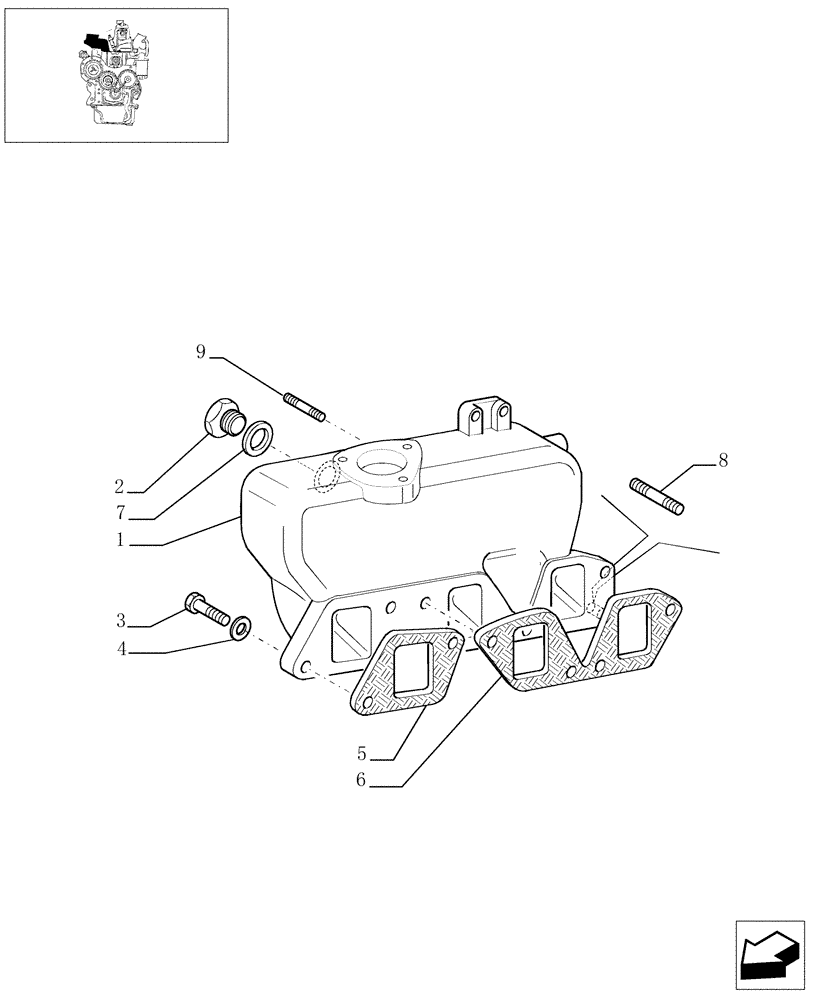

Запчасти Case IH JX65 (0.07.1[03]) - INTAKE MANIFOLD (AFTER S/N 13287) (01) - ENGINE

1

504047455

INLET MANIFOLD

1шт.

2

44903406

PLUG

1шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

4

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

5

98400791

GASKET,0.8mm Thk

1шт.

6

4851921

GASKET,0.8mm Thk

1шт.

7

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

8

13543321

STUD

M8 x 16 x 20

1шт.

9

13540921

STUD

2шт.
