Запчасти Case IH JX65 (1.92.9[01]) - ROTATING LIGHT - BUTTON, WIRES AND SUPPORT (10) - OPERATORS PLATFORM/CAB

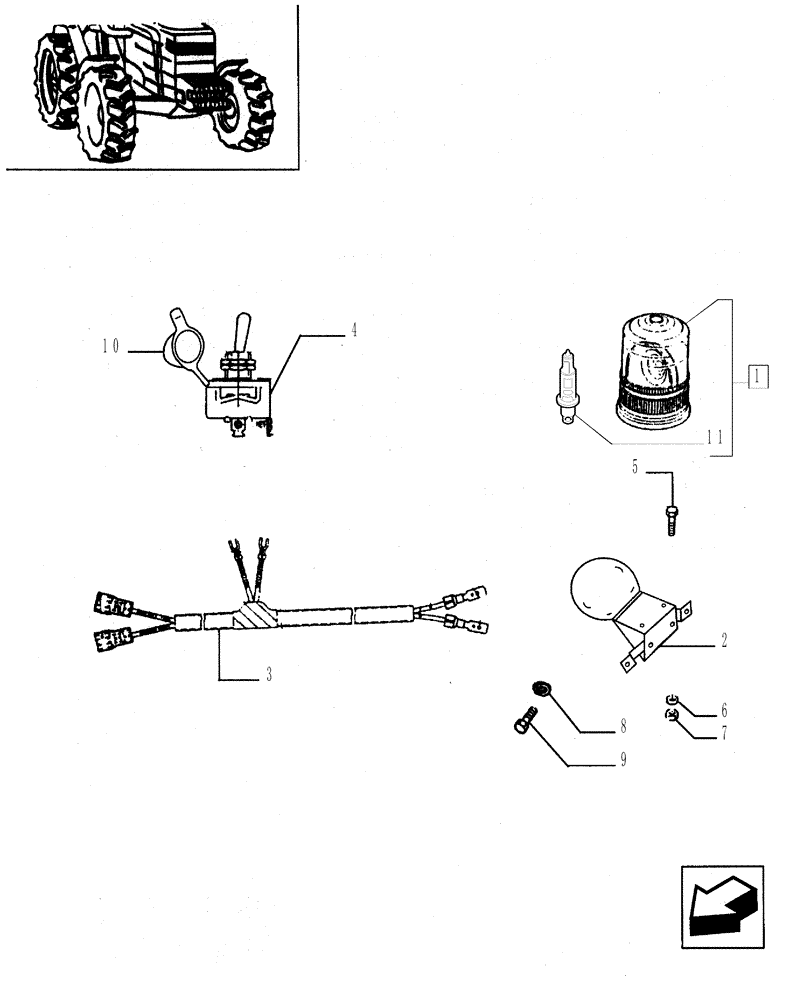

Схема запчастей Case IH JX65 - (1.92.9[01]) - ROTATING LIGHT - BUTTON, WIRES AND SUPPORT (10) - OPERATORS PLATFORM/CAB
9
2
11
8
6
4
7
3
5
1
10

Артикул

Название

Примечание

Количество

1

5092364

BEACON,12V, 55W, Amber

1шт.

2

5090581

SUPPORT

1шт.

3

5093819

WIRE HARNESS

Rotating Lamp

1шт.

4

5172070

BEACON SWITCH

Rotary Beacon

1шт.

5

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

3шт.

6

10571579

LOCK WASHER,M6

3шт.

7

15896211

NUT,M6, Cl 8

3шт.

8

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

10

5090240

COVER

1шт.

11

86616248

BULB,H1, 12V, 55W

1шт.

Выбрано товаров: 11
