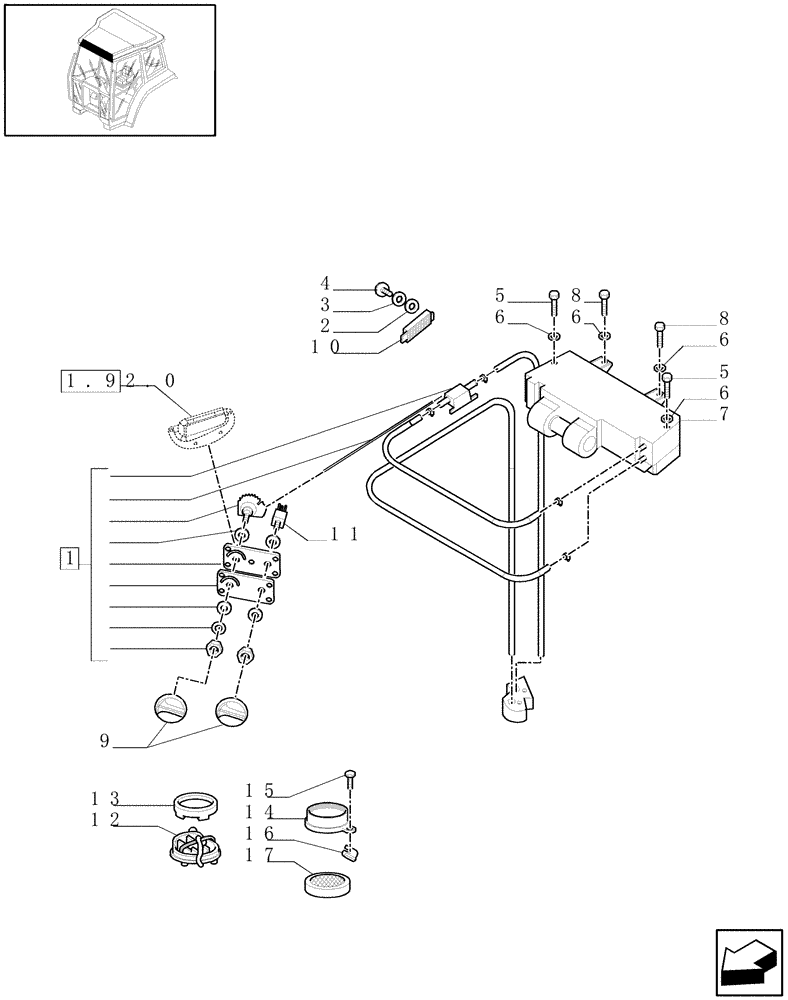

Запчасти Case IH JX65 (1.92.0[69]) - HEATING SYSTEM - KNOBS AND FILTER (10) - OPERATORS PLATFORM/CAB

1

5080103

SWITCH ASSY

Climate Control, Includes 9, 11

1шт.

2

5094485

WASHER

1шт.

3

5094484

WASHER

1шт.

4

5092916

KNOB

2шт.

5

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

2шт.

6

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

7

82034851

UNIT HEATER

1шт.

8

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

9

5091886

KNOB

Heater

2шт.

10

87603874

CAB FILTER

1шт.

11

5091892

SWITCH

Fan Speed

1шт.

12

5095622

VENT

, Serial Range: -C5478

6шт.

13

5108700

SEALING RING,98.5mm ID

1шт.

14

87574468

VENT

, Start Serial: D5478

6шт.

15

15909407

SELF-TAP SCREW,Pozidriv Oval Hd, M3.5 x 1.3 x 19mm

, Start Serial: D5478

12шт.

16

14226690

SQUARE NUT

, Start Serial: D5478

12шт.

17

87574476

FILTER

, Start Serial: D5478

2шт.
