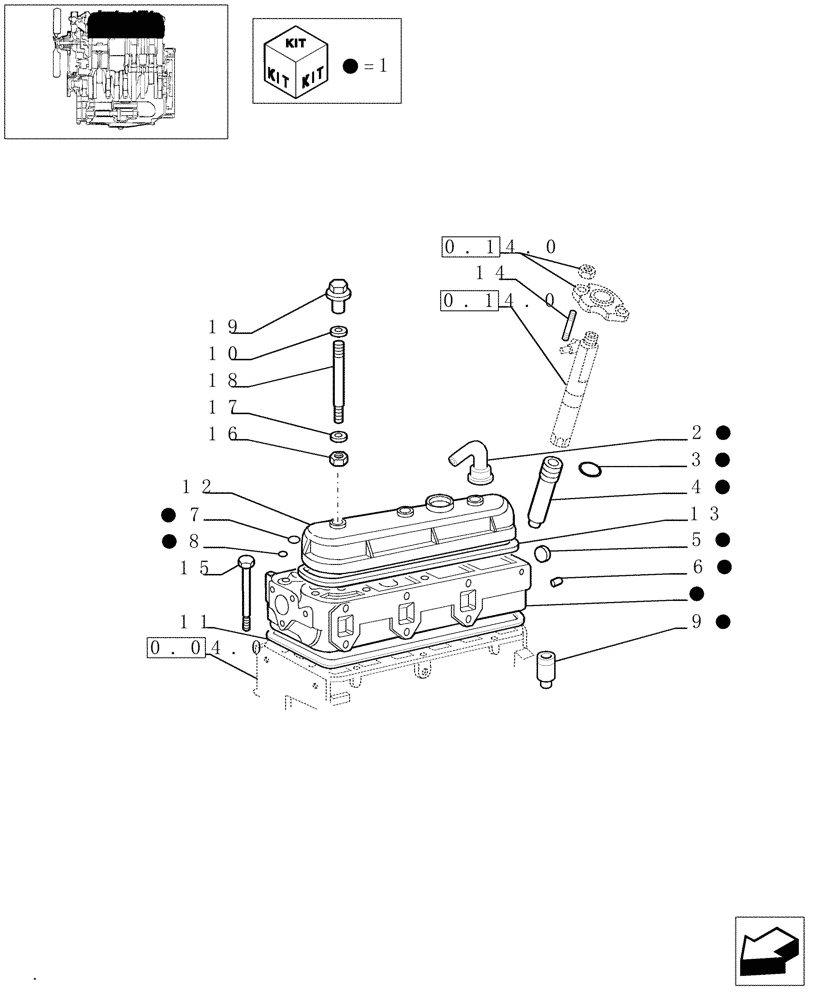

Запчасти Case IH JX65 (0.06.0[01]) - CYLINDER HEAD ASSEMBLY (BEFORE S/N 13286) (01) - ENGINE

1

99460479

CYLINDER HEAD

1шт.

2

4818862

HYD TUBE

3шт.

3

14453981

O-RING,0.989" ID x 0.07" Width

6шт.

4

4770859

SLEEVE

3шт.

5

14282970

PLUG,M45, Tapered, Stainless

1шт.

6

99434231

PLUG

M10 x 1.25

1шт.

7

14282470

PLUG,M28, Tapered, Stainless

6шт.

8

14282170

PLUG,M20, Tapered, Stainless

1шт.

9

4802126

VALVE GUIDE

+0.0

6шт.

9

4802127

VALVE GUIDE

+0.2

6шт.

10

98416134

SEALING WASHER,13mm ID x 24mm OD x 1.5mm Thk

3шт.

11

98472006

GASKET,1.35mm Thk

Thk 1.35, JX55

1шт.

11

99481359

CYLINDER HEAD GASKET

Thk 1.55, JX55

1шт.

11

98472011

GASKET,1.35mm Thk

Thk 1.35, JX65

1шт.

11

99486693

CYLINDER HEAD GASKET

Thk 1.55, JX65

1шт.

12

99478006

COVER

1шт.

13

99460554

CYLINDER HEAD GASKET

1шт.

14

500380521

STUD,M5 x 12 x 45mm

6шт.

15

4796457

BOLT,Flng, M12 x 1.25 x 122.5mm

M12 x 1.25

14шт.

16

43362

NUT,M8 x 1.25, Cl 10

3шт.

17

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

D=8.4 x 16 mm

3шт.

18

98458149

STUD,M8 x 88mm

M8 x 1.25 x 76

3шт.

19

98417659

NUT,Hex Flg, M8, 1.25mm Pitch

3шт.
