(1.92.0[25]) - CAB - LIGHTING DEVICES - FRONT AND REAR LIGHTS (NA ONLY)

Запчасти Case IH JX65 (1.92.0[25]) - CAB - LIGHTING DEVICES - FRONT AND REAR LIGHTS (NA ONLY) (10) - OPERATORS PLATFORM/CAB

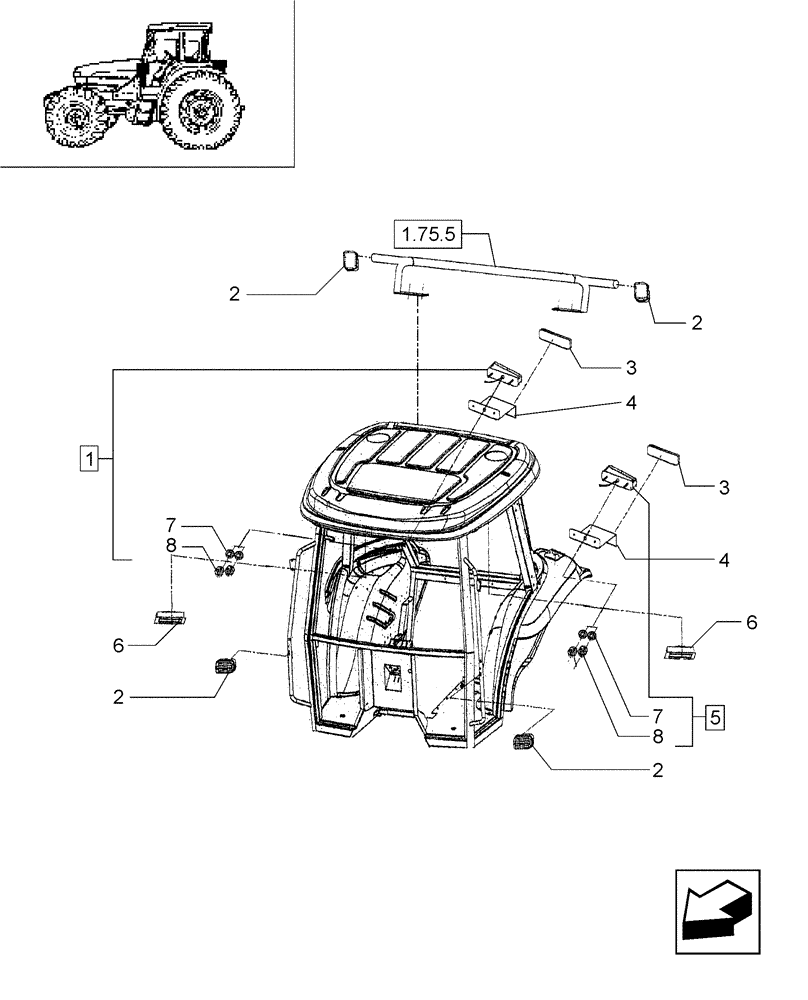

Схема запчастей Case IH JX65 - (1.92.0[25]) - CAB - LIGHTING DEVICES - FRONT AND REAR LIGHTS (NA ONLY) (10) - OPERATORS PLATFORM/CAB
8
1
4
6
6
2
2
8
2
7
3
3
4
2
5
1.75.5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091437

STOP LIGHT

Rear, RH

1шт.

2

5091442

INDICATOR LIGHT

Front, Directional

4шт.

3

5198373

REFLECTOR

2шт.

4

5093602

SUPPORT

2шт.

5

5091433

STOP LIGHT

Rear, LH

1шт.

6

5089561

CEILING LAMP

2шт.

7

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

4шт.

8

15896211

NUT,M6, Cl 8

4шт.

Выбрано товаров: 8
