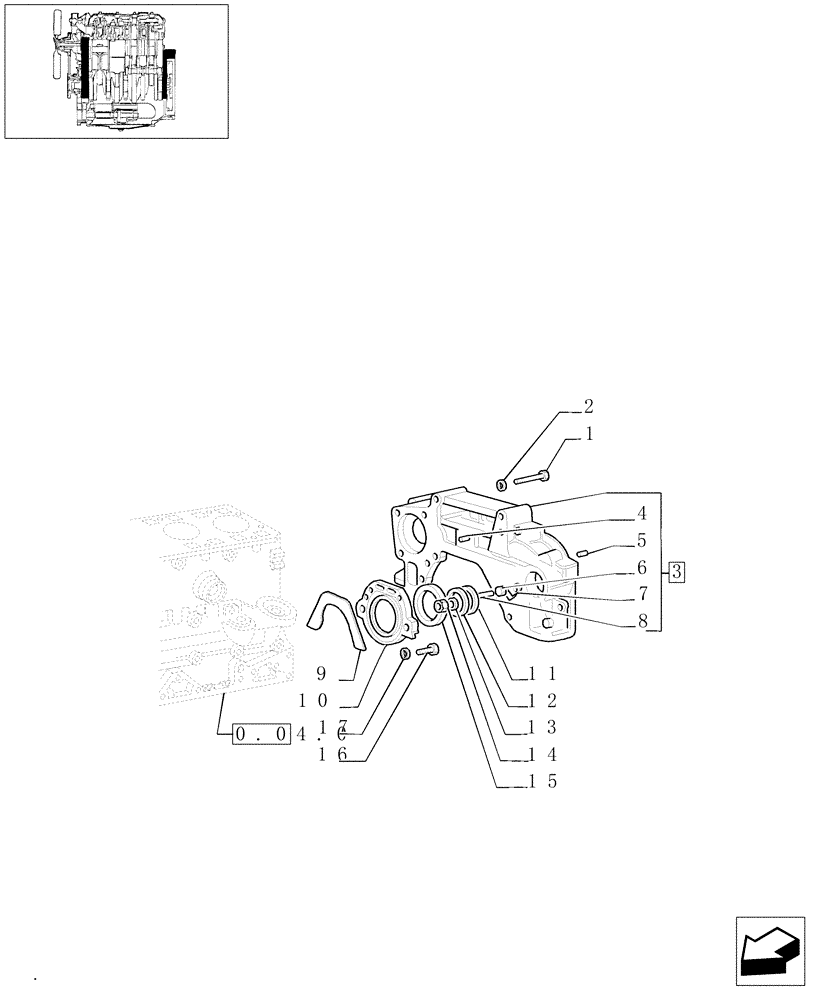

Запчасти Case IH JX65 (0.04.3/02[02]) - COVERS & GASKETS, REAR (AFTER S/N 13287) (01) - ENGINE

1

80280854

SCREW

M14 x 2 x 35

2шт.

1

16613324

SCREW,Hex, M14 x 100mm

M14 x 1.5 x 100

2шт.

2

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

3

99485219

COVER

1шт.

4

10839710

DOWEL,M10 x 15.00mm

2шт.

5

4658441

DOWEL,10mm OD x 20mm L

2шт.

6

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

7

4607466

OPERATOR TIMING REF/

OPERATOR TIMING REF/

1шт.

8

13543721

STUD

M8 x 16 x 35

1шт.

9

4849994

GASKET,0.8mm Thk

1шт.

10

98489586

COVER

1шт.

11

98400797

GASKET,47mm ID x 62mm OD x 0.8mm Thk

1шт.

12

4670802

COVER

1шт.

13

17094960

SEAL

1шт.

14

16104121

NUT,M8 x 1.25, Cl 10

1шт.

15

504127327

SEAL,114.8mm ID x 134.8mm OD x 13mm Thk

1шт.

16

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

17

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

5шт.
