(1.92.0[20]) - CAB - WORK LIGHT - FRONT AND REAR

Запчасти Case IH JX65 (1.92.0[20]) - CAB - WORK LIGHT - FRONT AND REAR (10) - OPERATORS PLATFORM/CAB

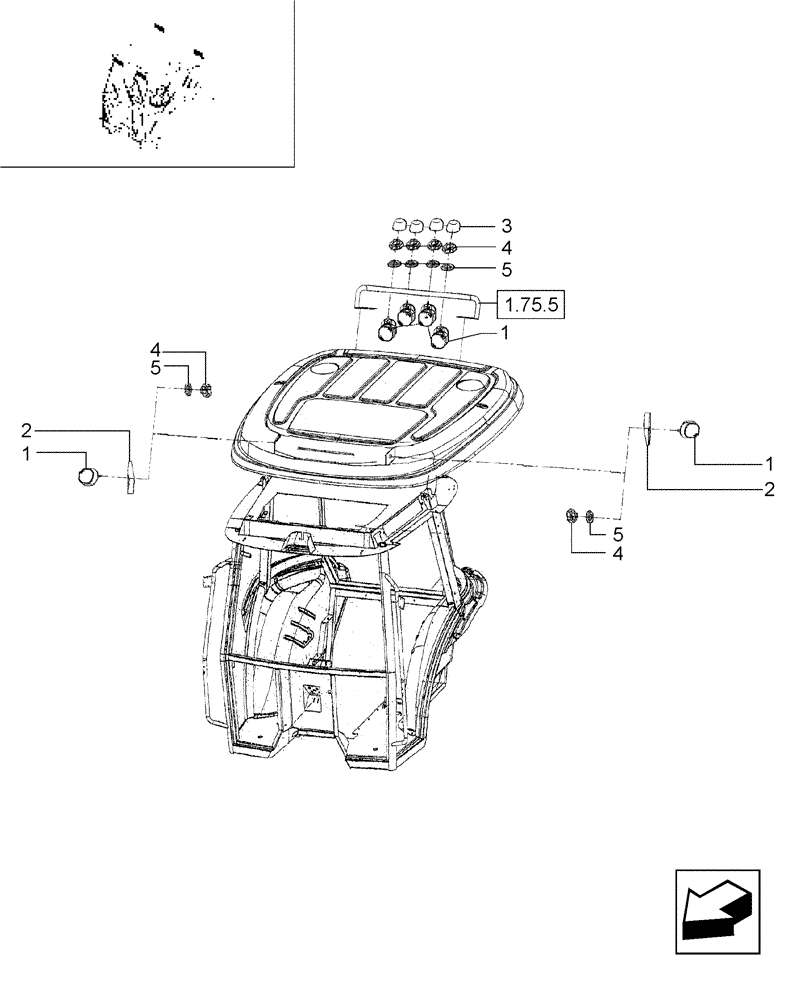

Схема запчастей Case IH JX65 - (1.92.0[20]) - CAB - WORK LIGHT - FRONT AND REAR (10) - OPERATORS PLATFORM/CAB
1
1
4
4
3
5
1.75.5
5
2
4
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5089593

WORK LAMP,Halogen, 12V, 55W, Clear

Rear

6шт.

2

5094125

COVER

4шт.

3

5094410

SPACER

2шт.

4

11701711

NUT,Hex, M10, Cl 8, ZND

6шт.

5

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

6шт.

Выбрано товаров: 5
