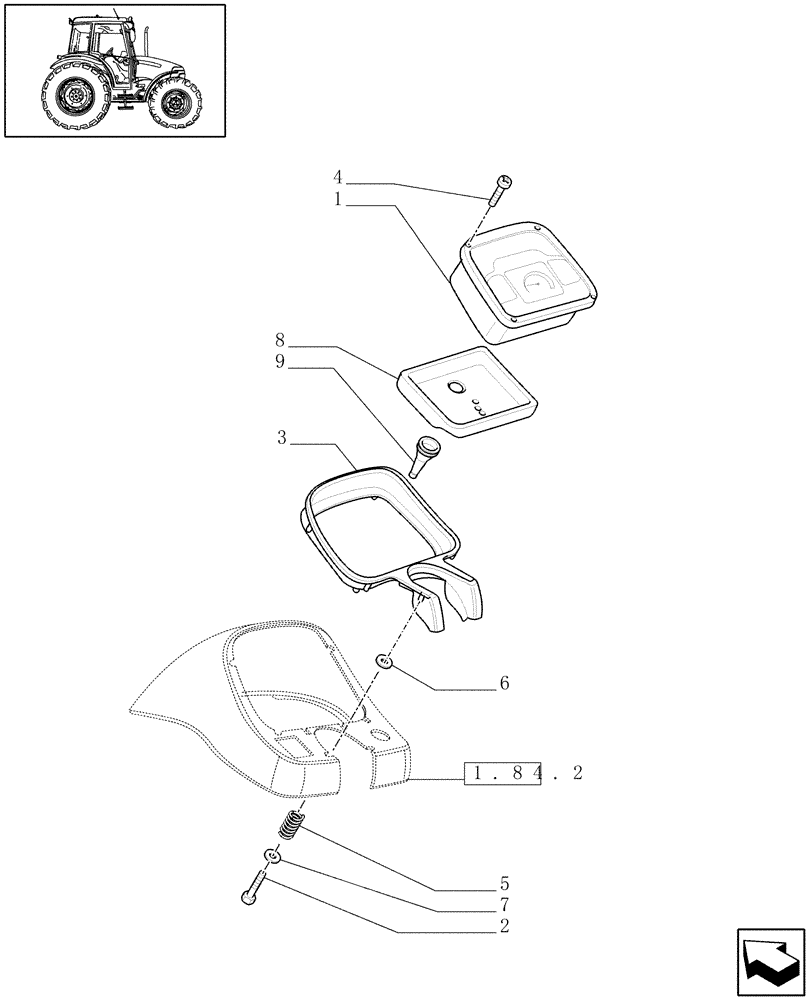

Запчасти Case IH JX65 (1.92.0[16]) - CAB - MULTIPLE INDICATOR INSTRUMENT (10) - OPERATORS PLATFORM/CAB

1

5096046

INSTRUMENT CLUSTER

1шт.

2

15693501

SCREW,Cross Oval Hd, M4.8 x 22

6шт.

3

5089537

BEZEL

1шт.

4

15958107

SCREW,Pan Hd, M4 x 25

4шт.

5

5089761

SPRING

6шт.

6

5094197

WASHER,10.5mm ID x 18mm OD x 2mm Thk

2шт.

7

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

6шт.

8

84286370

COVER

1шт.

9

84286371

BOOT

1шт.
