Запчасти Case IH JX65 (1.92.0[14]) - CAB - ELECTRIC CONTROLS - SWITCHES (10) - OPERATORS PLATFORM/CAB

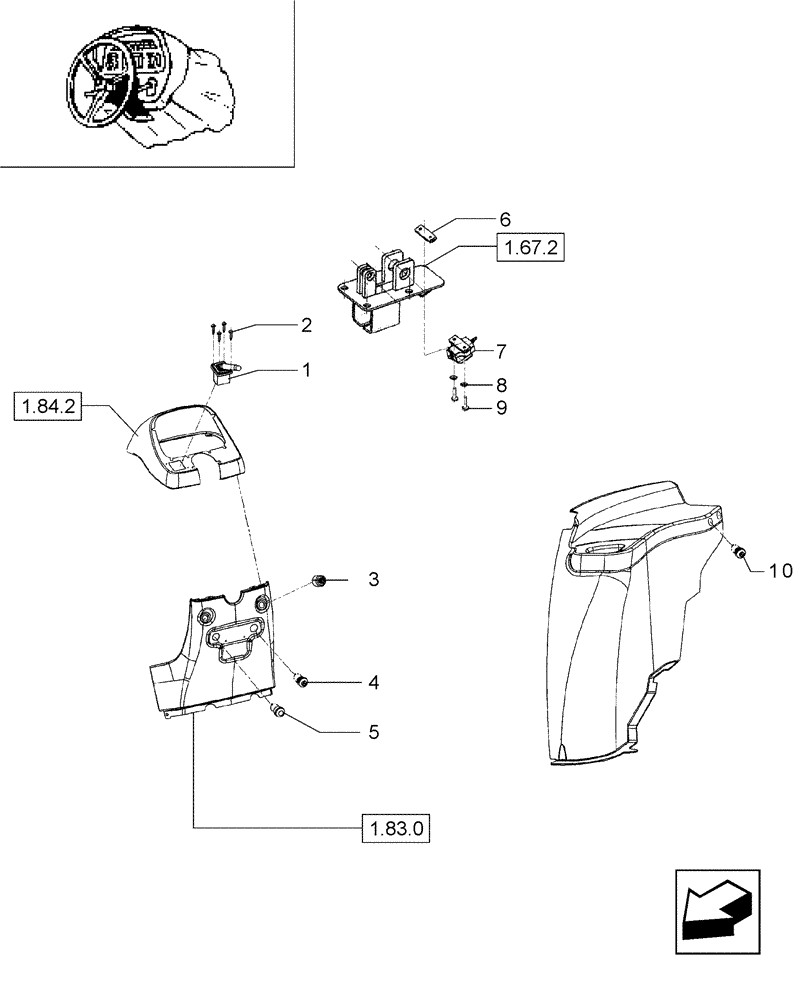

Схема запчастей Case IH JX65 - (1.92.0[14]) - CAB - ELECTRIC CONTROLS - SWITCHES (10) - OPERATORS PLATFORM/CAB
2
1.84.2
6
10
1
8
7
1.83.0
9
1.67.2
3
4
5

Артикул

Название

Примечание

Количество

1

5089705

SWITCH

Lights, Horn, Directional Signals

1шт.

2

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

4шт.

3

5129862

IGNITION SWITCH

1шт.

4

5122659

FLASHER SWITCH

Emergency, HAZARD

1шт.

5

5093168

LIGHT SWITCH

Front Work, Hood

1шт.

6

5093339

BRACKET

, Serial Range: -C7007

1шт.

7

5093385

PUSH BUTTON SWITCH

Hand Brake Warning

1шт.

8

10571379

LOCK WASHER,M4

2шт.

9

13272211

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

2шт.

10

5094412

CIGARETTE LIGHTER

1шт.

Выбрано товаров: 10
